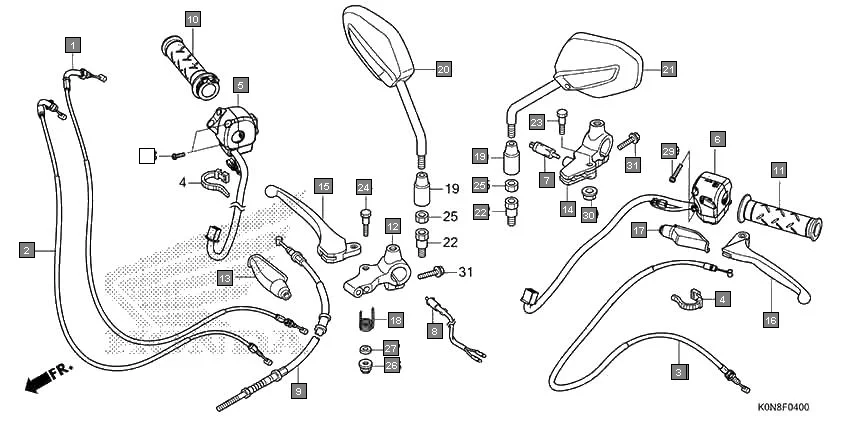

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA SP125 CBF125MEP · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K0N-D81 | CABLE COMP. A, THROTTLE (SUPRAJIT) | 1 | |
| 1 | 17910-K0N-D91 | CABLE COMP. A, THROTTLE (HI-LEX) | 1 | |
| 2 | 17920-K0N-D81 | CABLE COMP. B, THROTTLE (SUPRAJIT) | 1 | |
| 2 | 17920-K0N-D01 | CABLE COMP. B, THROTTLE (HI-LEX) | 1 | |
| 3 | 22870-K0N-D01 | CABLE COMP., CLUTCH(HI-LEX) | 1 | |
| 3 | 22870-K0N-601 | CABLE COMP., CLUTCH | 1 | |
| 3 | 22870-K0V-BG1 | CABLE COMP., CLUTCH | 1 | |
| 4 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 5 | 35130-K0N-D81 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 5 | 35130-K0N-D91 | SWITCH ASSY., STARTER & ENGINE STOP(MINDA) | 1 | |
| 6 | 35200-K0N-D81 | SWITCH ASSY., WINKER(MINDA) | 1 | |
| 7 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 8 | 35340-KTE-601 | SWITCH ASSY., FR. STOP | 1 | |
| 9 | 45450-K0N-D11 | CABLE COMP., FR. BRAKE | 1 | |
| 10 | 53140-K0N-D00 | GRIP COMP., THROTTLE | 1 | |
| 11 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 12 | 53171-K0N-D10 | BRACKET, R. HANDLE LEVER | 1 | |
| 13 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 14 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 15 | 53175-K0N-D10 | LEVER COMP., R. HANDLE | 1 | |
| 16 | 53178-K0N-D00 | LEVER COMP., L. HANDLE | 1 | |
| 17 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 18 | 53199-K0N-D10 | SPRING, BRAKE LEVER RETURN | 1 | |
| 19 | 88114-K0N-D80 | CAP, LOCK NUT | 2 | |
| 20 | 88210-K0N-D81ZC | MIRROR COMP., R. *NH1* BLACK | 1 | |
| 21 | 88220-K0N-D81ZC | MIRROR COMP., L. *NH1* BLACK | 1 | |
| 22 | 90103-K38-940 | BOLT, ADAPTER, 10MM | 2 | |
| 23 | 90114-428-870 | BOLT,HANDLE LEVER PIVOT | 1 | |
| 24 | 90115-KTE-DB0 | BOLT, R. HANDLE LEVER PIVOT | 1 | |
| 25 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 27 | 90502-KTE-DB0 | WASHER, 5MM | 1 | |
| 28 | 93892-05016-07 | SCREW-WASHER, 5X16 | 2 | |
| 29 | 93892-05025-07 | SCREW, WASHER, 5X25 | 2 | |
| 31 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
