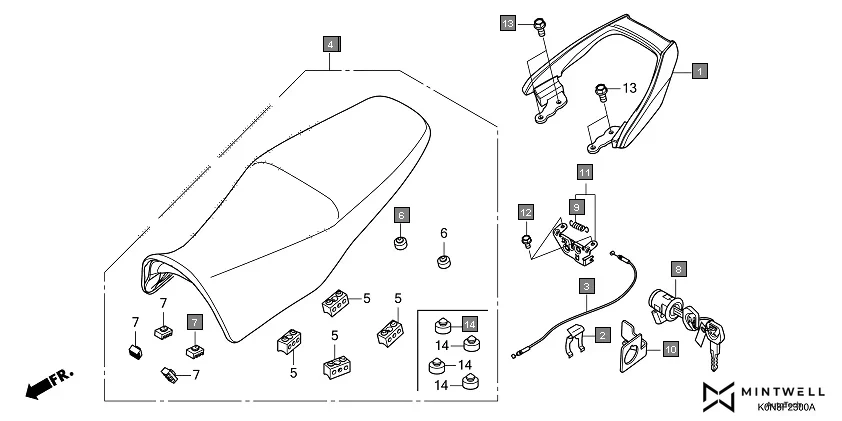

F-23 - SEAT
HONDA SP125 CBF125MEP · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K0N-D80ZB | GRIP, RR. *NH1* BLACK | 1 | |
| 2 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 3 | 77156-K0N-D01 | CABLE COMP., SEAT LOCK(HI-LEX) | 1 | |
| 4 | 77200-K0N-661 | SEAT ASSY., DOUBLE | 1 | |
| 4 | 77200-K0N-D81 | SEAT ASSY., DOUBLE | 1 | |
| 6 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 7 | 77207-KYA-600 | RUBBER B, SEAT SETTING | 4 | |
| 8 | 77225-K0N-D01 | LOCK ASSY., SEAT | 1 | |
| 9 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 | |
| 10 | 77241-K0N-D00 | STAY, SEAT LOCK CABLE | 1 | |
| 11 | 77250-K0N-D00 | LOCK COMP., SEAT | 1 | |
| 13 | 95701-08020-08 | BOLT, FLANGE, 8X20 | 4 | |
| 14 | 77206-KTE-910 | RUBBER, SEAT SETTING | 4 | |
