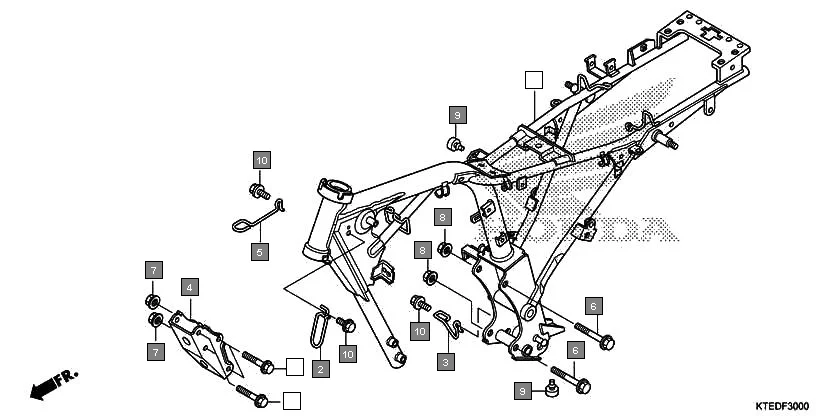

F-30 - FRAME BODY
HONDA CB Shine/ Shine 125 CBF125MCC · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50100-KTE-A00 | BODY COMP., FRAME | 1 | |
| 2 | 50187-KTE-600 | GUIDE, MAIN HARNESS | 1 | |
| 3 | 50296-KTE-910 | GUIDE, DRAIN HOSE | 1 | |
| 4 | 50351-KTE-910 | PLATE, FR. ENGINE HANGER | 1 | |
| 5 | 50721-KTE-910 | GUIDE, CLUTCH CABLE | 1 | |
| 6 | 90019-399-010 | BOLT, FLANGE, 10 X 110 | 2 | |
| 7 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
| 9 | 95011-62000 | RUBBER B, STAND STOPPER | 2 | |
| 11 | 95801-08085-00 | BOLT, FLANGE, 8X85 | 4 | |
| 11 | 95802-08085-00 | BOLT, FLANGE, 8X85 | 4 | |
