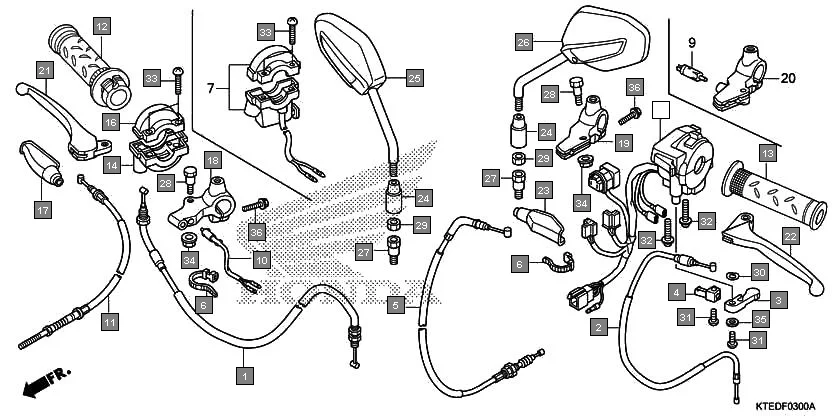

F-3 - HANDLE LEVER/SWITCH/CABLE
HONDA CB Shine/ Shine 125 CBF125MCC · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-KTE-601 | CABLE COMP., THROTTLE | 1 | |
| 2 | 17950-KTE-910 | CABLE COMP., CHOKE | 1 | |
| 3 | 17961-KTE-911 | LEVER, CHOKE | 1 | |
| 4 | 17962-KTE-910 | STOPPER, CABLE | 1 | |
| 5 | 22870-KTE-910 | CABLE COMP., CLUTCH | 1 | |
| 6 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 8 | 35200-KTE-761 | SWITCH ASSY., WINKER | 1 | |
| 8 | 35200-KTE-601 | SWITCH ASSY., WINKER | 1 | |
| 10 | 35340-KTE-601 | SWITCH ASSY., FR. STOP | 1 | |
| 11 | 45450-KTE-910 | CABLE COMP., FR. BRAKE | 1 | |
| 12 | 53140-KSP-A70 | GRIP COMP THROT | 1 | |
| 13 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 14 | 53167-GE4-000 | HOUSING UNDER,THROTTLE | 1 | |
| 16 | 53168-KTE-910 | HOUSING UND.THROTTLE | 1 | |
| 17 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 18 | 53171-KTE-A00 | BRACKET, R. HANDLE LEVER | 1 | |
| 19 | 53172-KTE-910 | BRKT L HNDL LEVER | 1 | |
| 21 | 53175-KTE-A00 | LEVER COMP., R. HANDLE | 1 | |
| 22 | 53178-KTE-A00 | LEVER COMP., L. HANDLE | 1 | |
| 23 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 24 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 25 | 88210-KWS-902 | MIRROR COMP., R. | 1 | |
| 26 | 88220-KWS-902 | MIRROR COMP., L. | 1 | |
| 27 | 90103-KTE-920 | BOLT, ADAPTER, 10MM | 2 | |
| 28 | 90114-428-870 | BOLT,HANDLE LEVER PIVOT | 2 | |
| 29 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 30 | 90442-147-000 | WASHER, WAVE | 1 | |
| 31 | 93500-05010-0A | SCREW, PAN, 5X10 | 2 | |
| 32 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 33 | 93500-05022-0G | SCREW, PAN, 5X22 | 2 | |
| 35 | 94103-05000 | WASHER, PLAIN, 5MM | 1 | |
| 36 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
