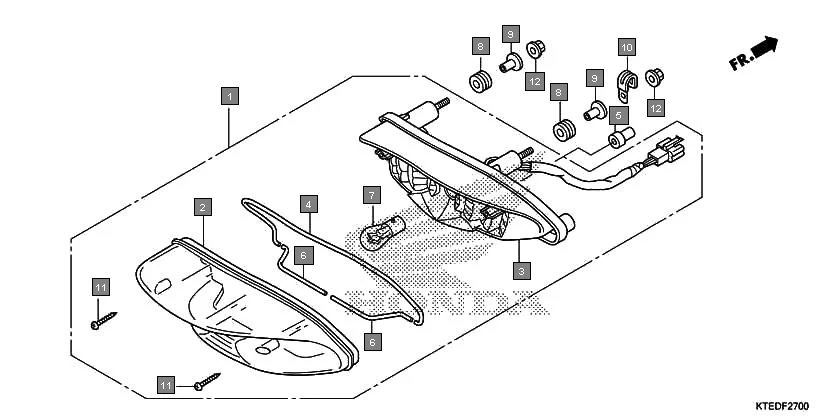

F-27 - TAILLIGHT
HONDA CB Shine/ Shine 125 CBF125MCC · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33701-KTE-600 | TAILLIGHT ASSY.(12V 21/5W) | 1 | |
| 2 | 33703-KTE-910 | LENS COMP., TAILLIGHT | 1 | |
| 3 | 33704-KTE-910 | BASE COMP., TAILLIGHT | 1 | |
| 4 | 33705-KTE-910 | PACKING, LENS | 1 | |
| 5 | 33706-KTE-910 | GROMMET, TAILLIGHT | 1 | |
| 6 | 33707-KTE-910 | PACKING, LENS | 2 | |
| 7 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 9 | 61104-KM7-910 | COLLAR,FAIRING | 2 | |
| 10 | 90651-KTE-910 | CLIP, 4X50 | 1 | |
| 11 | 93903-24580 | SCREW, TAPPING, 4X20 | 2 | |
| 12 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
