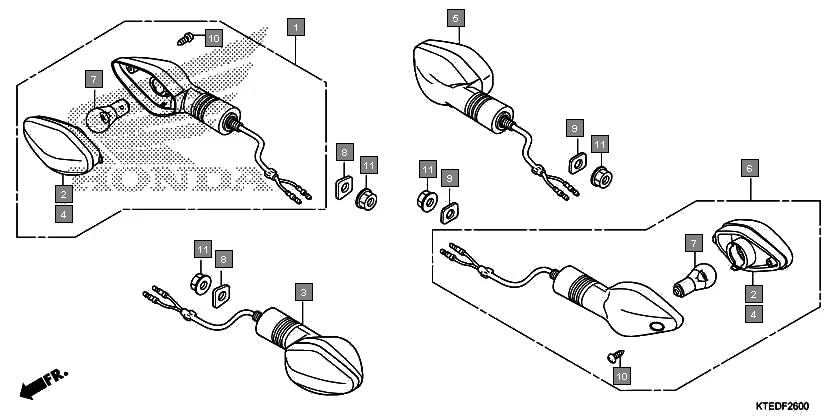

F-26 - WINKER
HONDA CB Shine/ Shine 125 CBF125MCC · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-KTE-601 | WINKER ASSY., R. FR.(12V 10W) | 1 | |
| 2 | 33403-KWS-901 | LENS COMP., R.(R. FR./L. RR.) | 2 | |
| 3 | 33450-KTE-601 | WINKER ASSY., L. FR.(12V 10W) | 1 | |
| 4 | 33453-KWS-901 | LENS COMP., L.(L. FR./R. RR.) | 2 | |
| 5 | 33600-KTE-601 | WINKER ASSY., R. RR.(12V 10W) | 1 | |
| 6 | 33650-KTE-601 | WINKER ASSY., L. RR.(12V 10W) | 1 | |
| 7 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 4 | |
| 8 | 61315-KTE-600 | STAY, FR. WINKER | 2 | |
| 9 | 80103-KWS-900 | STAY, RR. WINKER | 2 | |
| 10 | 93901-34380 | SCREW TAPPING 4X12 | 4 | |
