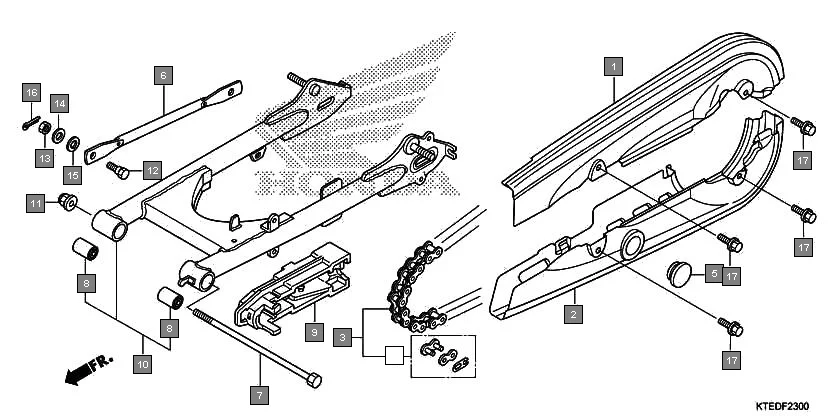

F-23 - SWINGARM
HONDA CB Shine/ Shine 125 CBF125MCC · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-KTE-A00ZA | CASE, UPPER HALF DRIVE CHAIN *NH105* MAT BLACK(#15-#20) | 1 | |
| 2 | 40520-KTE-910ZB | CASE, UNDER HALF DRIVE CHAIN *NH105* MAT BLACK(#15-#20) | 1 | |
| 3 | 40530-KTE-601 | CHAIN, DRIVE(420-116)(LGB) | 1 | |
| 3 | 40530-KTE-912 | CHAIN, DRIVE(420-116)(DID) | 1 | |
| 4 | 40531-KWB-601 | JOINT, DRIVE CHAIN(DAIDO) | 1 | |
| 4 | 40531-KTE-912 | JOINT, DRIVE CHAIN(LGB) | 1 | |
| 5 | 40545-001-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 43431-KTE-910 | ARM, RR. BRAKE STOPPER | 1 | |
| 7 | 52101-KTC-900 | BOLT, SWINGARM PIVOT | 1 | |
| 8 | 52147-KW7-900 | RUBBER BUSH REAR FORK PIVOT | 2 | |
| 9 | 52170-KTE-910 | SLIDER, CHAIN | 1 | |
| 10 | 52200-KTE-A00 | SWINGARM SUB ASSY., RR. | 1 | |
| 12 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 14 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 15 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
