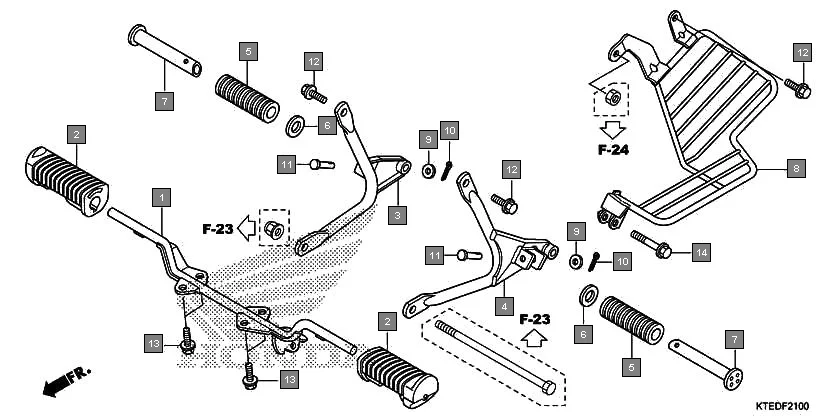

F-21 - STEP
HONDA CB Shine/ Shine 125 CBF125MCC · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50610-KTE-910 | BAR COMP., STEP | 1 | |
| 2 | 50660-GB2-000 | RUBBER, STEP | 2 | |
| 3 | 50701-KTE-910 | BRACKET COMP., R. PILLION STEP | 1 | |
| 4 | 50702-KTE-910 | BRACKET COMP., L. PILLION STEP | 1 | |
| 5 | 50710-KTE-910 | RUBBER, PILLION STEP | 2 | |
| 6 | 50712-405-000 | WASHER, PILLION STEP | 2 | |
| 7 | 50715-405-000 | BAR COMP., STEP PILLION | 2 | |
| 8 | 51103-KTE-A00 | GUARD, SARI | 1 | |
| 10 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 11 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 12 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 3 | |
| 12 | 95702-08016-00 | BOLT, FLANGE, 8X16 | 3 | |
| 14 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 14 | 95702-08035-00 | BOLT, FLANGE, 8X35 | 1 | |
