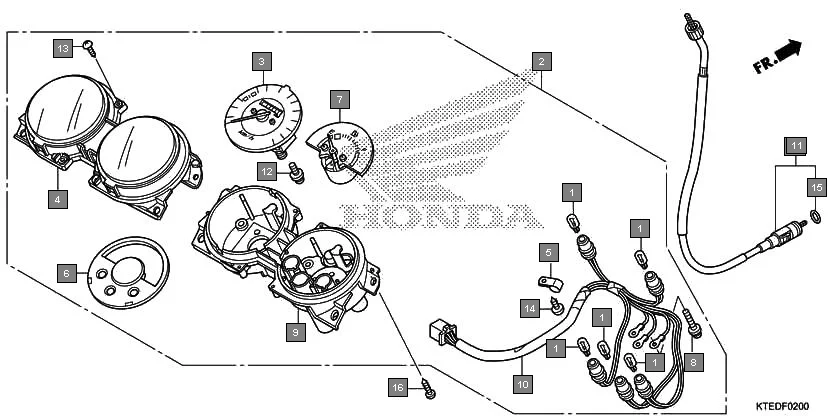

F-2 - METER
HONDA CB Shine/ Shine 125 CBF125MCC · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 5 | |
| 2 | 37100-KTE-601 | METER ASSY., COMBINATION | 1 | |
| 3 | 37210-KTE-601 | SPEEDOMETER COMP. | 1 | |
| 4 | 37211-KTE-600 | LENS | 1 | |
| 5 | 37215-KS3-901 | CLAMP | 1 | |
| 6 | 37240-KTE-601 | PLATE ASSY., REFLECTING | 1 | |
| 7 | 37300-KTE-601 | METER COMP., FUEL | 1 | |
| 8 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 9 | 37610-KTE-601 | CASE ASSY., UNDER | 1 | |
| 10 | 37619-KTE-601 | SOCKET COMP. | 1 | |
| 11 | 44830-KTE-912 | CABLE COMP., SPEEDOMETER | 1 | |
| 12 | 90035-166-008 | SCREW-WASHER, SPECIAL, 4X10 | 2 | |
| 13 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 4 | |
| 14 | 90109-MZ5-008 | SCREW, TAPPING, 4 X 14 | 1 | |
| 15 | 91352-671-003 | O-RING, 8.5X1.5(ARAI) | 1 | |
| 15 | 91352-671-004 | O-RING, 8.5X1.5(NOK) | 1 | |
| 16 | 93903-35310 | SCREW TAPPING 5X16 | 4 | |
