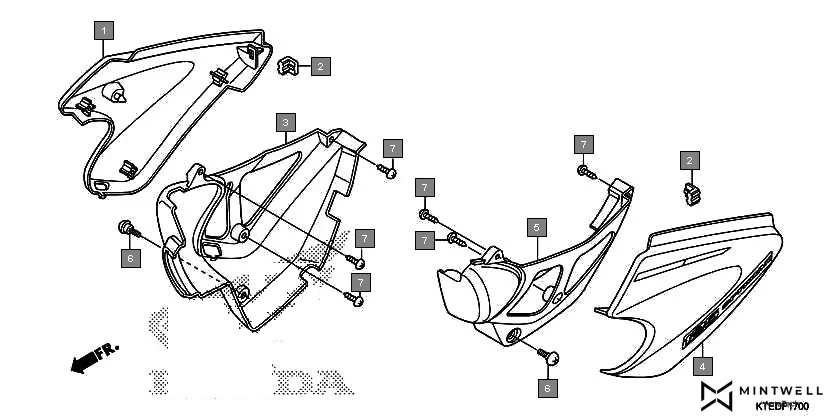

F-17 - SIDE COVER
HONDA CB Shine/ Shine 125 CBF125MCC · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83500-KTE-600ZA | COVER SET, R. SIDE(WL) *TYPE5* | 1 | |
| 1 | 83500-KTE-600ZB | COVER SET, R. SIDE(WL) *TYPE4* | 1 | |
| 1 | 83500-KTE-600ZC | COVER SET, R. SIDE(WL) *TYPE3* | 1 | |
| 1 | 83500-KTE-600ZD | COVER SET, R. SIDE(WL) *TYPE2* | 1 | |
| 1 | 83500-KTE-600ZE | COVER SET, R. SIDE(WL) *TYPE1* | 1 | |
| 2 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 3 | 83502-KTE-A00 | SUB COVER, R. SIDE | 1 | |
| 4 | 83600-KTE-600ZA | COVER SET, L. SIDE(WL) *TYPE5* | 1 | |
| 4 | 83600-KTE-600ZB | COVER SET, L. SIDE(WL) *TYPE4* | 1 | |
| 4 | 83600-KTE-600ZC | COVER SET, L. SIDE(WL) *TYPE3* | 1 | |
| 4 | 83600-KTE-600ZD | COVER SET, L. SIDE(WL) *TYPE2* | 1 | |
| 4 | 83600-KTE-600ZE | COVER SET, L. SIDE(WL) *TYPE1* | 1 | |
| 5 | 83602-KTE-A00 | SUB COVER, L. SIDE | 1 | |
| 6 | 90104-KT2-000 | SCREW, SPECIAL, 6X14 | 2 | |
