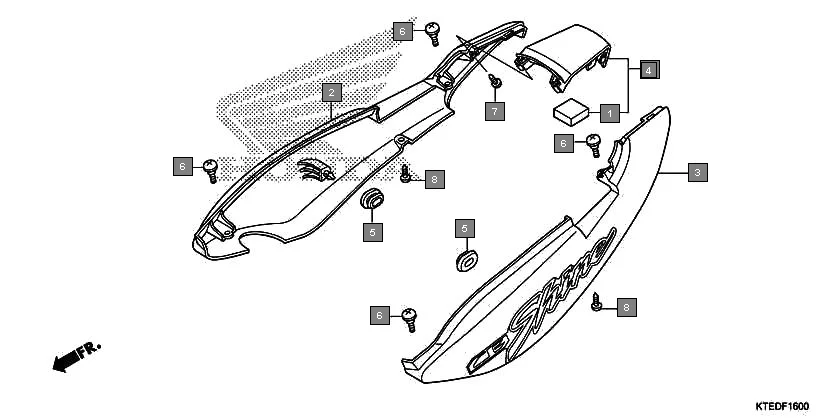

F-16 - REAR COWL
HONDA CB Shine/ Shine 125 CBF125MCC · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77209-KTE-910 | CUSHION, RR. COWL | 1 | |
| 2 | 77260-KTE-600ZA | COWL SET, R. RR.(WL) *TYPE5* | 1 | |
| 2 | 77260-KTE-600ZB | COWL SET, R. RR.(WL) *TYPE4* | 1 | |
| 2 | 77260-KTE-600ZC | COWL SET, R. RR.(WL) *TYPE3* | 1 | |
| 2 | 77260-KTE-600ZD | COWL SET, R. RR.(WL) *TYPE2* | 1 | |
| 2 | 77260-KTE-600ZE | COWL SET, R. RR.(WL) *TYPE1* | 1 | |
| 3 | 77270-KTE-600ZA | COWL SET, L. RR.(WL) *TYPE5* | 1 | |
| 3 | 77270-KTE-600ZB | COWL SET, L. RR.(WL) *TYPE4* | 1 | |
| 3 | 77270-KTE-600ZC | COWL SET, L. RR.(WL) *TYPE3* | 1 | |
| 3 | 77270-KTE-600ZD | COWL SET, L. RR.(WL) *TYPE2* | 1 | |
| 3 | 77270-KTE-600ZE | COWL SET, L. RR.(WL) *TYPE1* | 1 | |
| 4 | 77280-KTE-600ZE | COWL SET, RR. CENTER(WL) *TYPE5* | 1 | |
| 4 | 77280-KTE-600ZF | COWL SET, RR. CENTER(WL) *TYPE3* | 1 | |
| 4 | 77280-KTE-600ZG | COWL SET, RR. CENTER(WL) *TYPE2* | 1 | |
| 4 | 77280-KTE-600ZH | COWL SET, RR. CENTER(WL) *TYPE1* | 1 | |
| 4 | 77280-KTE-600ZJ | COWL SET, RR. CENTER(WL) *TYPE4* | 1 | |
| 4 | 77280-KTE-910ZA | COWL SET, RR. CENTER(WL) *NH411M* FORCE SILVER METALLIC | 1 | |
| 5 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 6 | 90104-GT8-600 | SCREW SPL. 6X14 | 4 | |
| 7 | 93903-24320 | SCREW, TAPPING, 4X12 | 2 | |
| 8 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
