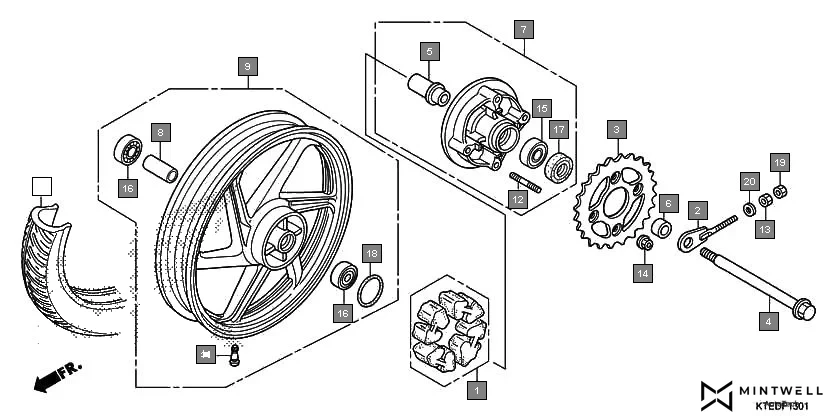

F-13-1 - REAR WHEEL(2)
HONDA CB Shine/ Shine 125 CBF125MCC · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KTE-910 | DAMPER SET, WHEEL | 1 | |
| 2 | 40543-KTE-910 | ADJUSTER COMP., R. CHAIN | 1 | |
| 3 | 41201-KTE-910 | SPROCKET, FINAL DRIVEN(41T) | 1 | |
| 4 | 42301-KTE-A00 | AXLE, RR. WHEEL | 1 | |
| 5 | 42303-KWF-950 | SLEEVE, RR. WHEEL | 1 | |
| 6 | 42304-KTE-A00 | COLLAR, RR. AXLE SLEEVE | 1 | |
| 7 | 42615-KTE-600 | FLANGE SUB ASSY., FINAL DRIVEN | 1 | |
| 8 | 42620-KTE-950 | COLLAR,RR AXLE DIST | 1 | |
| 9 | 42650-KTE-600ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 10 | 42711-KTE-601 | TIRE, RR.(MRF) (80/100-18 M/C 54P) | 1 | |
| 10 | 42711-KTE-602 | TIRE, RR.(TVS) (80/100-18 M/C 54P) | 1 | |
| 11 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 12 | 90128-KTE-910 | BOLT,STUD,8X20 | 4 | |
| 13 | 90302-KBP-900 | NUT SPL 6 MM | 1 | |
| 14 | 90309-KTE-911 | NUT,FLG PT 8MM | 4 | |
| 15 | 91051-KWF-901 | BRG.BALL RADIAL 6203 (UU) | 1 | |
| 15 | 96150-62030-10 | BEARING, BALL RADIAL, 6203 (UU) | 1 | |
| 16 | 91052-KWF-901 | BEARING, RADIAL BALL, 6301U (NSK) | 2 | |
| 16 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 17 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 1 | |
| 18 | 91304-704-000 | O-RING 42 MM | 1 | |
| 19 | 94001-06000-0S | NUT, HEX., 6 MM | 1 | |
| 20 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
