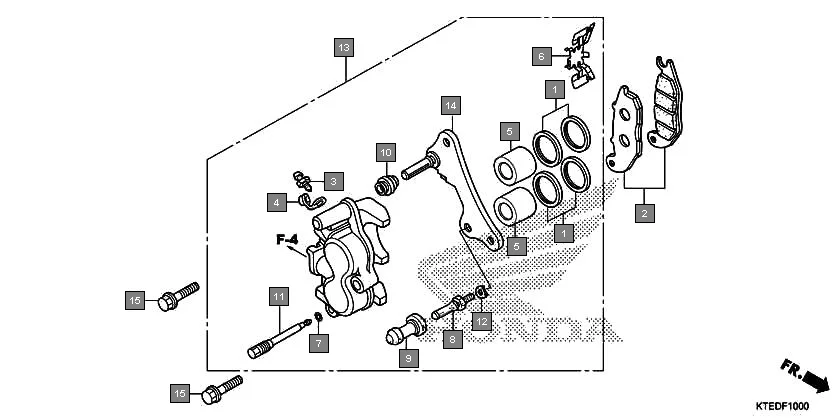

F-10 - FRONT BRAKE CALIPER
HONDA CB Shine/ Shine 125 CBF125MCC · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-GE2-405 | SEAL SET, PISTON | 2 | |
| 2 | 06455-KPP-N01 | PAD SET, FR. | 1 | |
| 3 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 1 | |
| 4 | 43353-461-771 | CAP, BLEEDER | 1 | |
| 5 | 45107-GE2-006 | PISTON | 2 | |
| 6 | 45108-KPH-951 | SPRING, PAD | 1 | |
| 7 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 8 | 45131-GZ0-006 | BOLT, PIN | 1 | |
| 9 | 45132-166-016 | BOOT, PIN BUSH(NISSIN) | 1 | |
| 10 | 45133-MA3-006 | BOOT B | 1 | |
| 11 | 45215-KPH-951 | PIN, HANGER | 1 | |
| 12 | 45216-166-006 | WASHER, WAVE | 1 | |
| 13 | 45250-KYE-902 | CALIPER SUB ASSY., R. FR.(NISSIN) | 1 | |
| 14 | 45290-KPP-901 | BRACKET SUB ASSY., R. FR. | 1 | |
| 15 | 90155-KSP-900 | BOLT , FLANGE 8X25 | 2 | |
