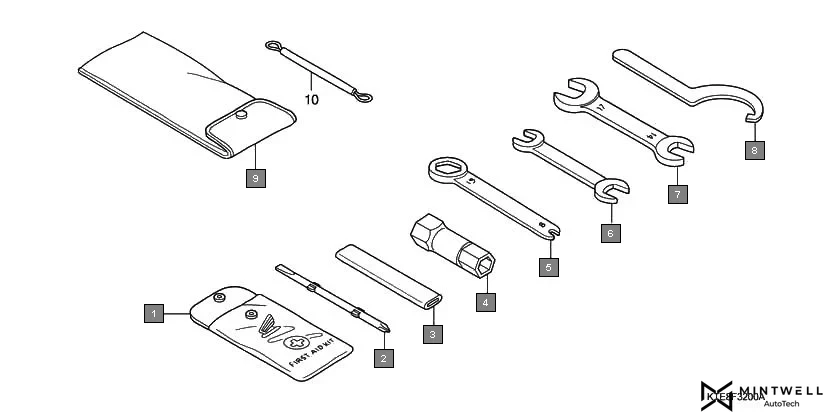

F-32 - TOOLS
HONDA CBF Stunner CBF125MC · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 84510-KPL-900 | AID KIT, FIRST | 1 | |
| 2 | 89102-KTE-910 | DRIVER NO.2 PLUS MINUS | 1 | |
| 3 | 89215-KPL-900 | HANDLE, EYE WRENCH, 12MM | 1 | |
| 4 | 89216-KTE-910 | WRENCH SPARKING PLUG | 1 | |
| 5 | 89218-KPL-900 | WRENCH, EYE, 19MM | 1 | |
| 6 | 89225-KPL-900 | SPANNER 10X12 | 1 | |
| 7 | 89233-KSP-900 | SPANNER 14X17 | 1 | |
| 8 | 99007-45000 | PIN, SPANNER | 1 | |
| 9 | 99008-01600 | BAG, TOOL, 160MM | 1 | |
