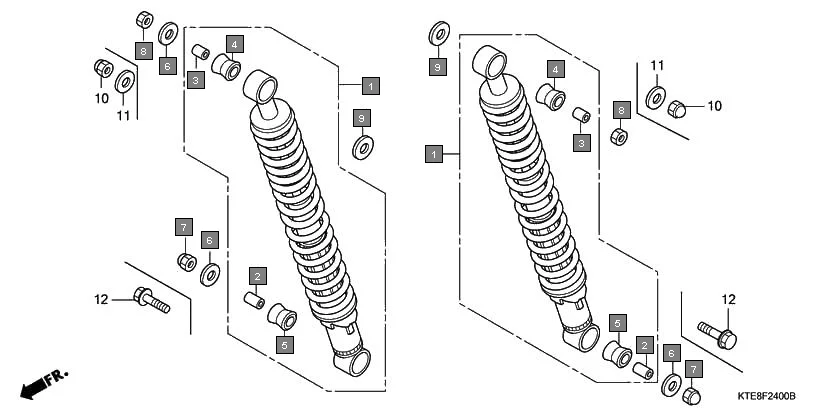

F-24 - REAR CUSHION
HONDA CBF Stunner CBF125M9/MF · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KTE-911 | CUSHION ASSY., RR. | 2 | |
| 2 | 52486-KAG-901 | COLLAR RUBBER BUSH | 2 | |
| 3 | 52486-056-000 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 4 | 52489-399-601 | BUSH, RUBBER (UPPER) | 2 | |
| 5 | 52495-098-000 | BUSH, RUBBER (UNDER) | 2 | |
| 6 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 3 | |
| 7 | 94021-10020-0S | NUT, CAP, 10MM | 2 | |
| 8 | 94030-10000 | NUT HEX., 10MM | 2 | |
| 9 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
