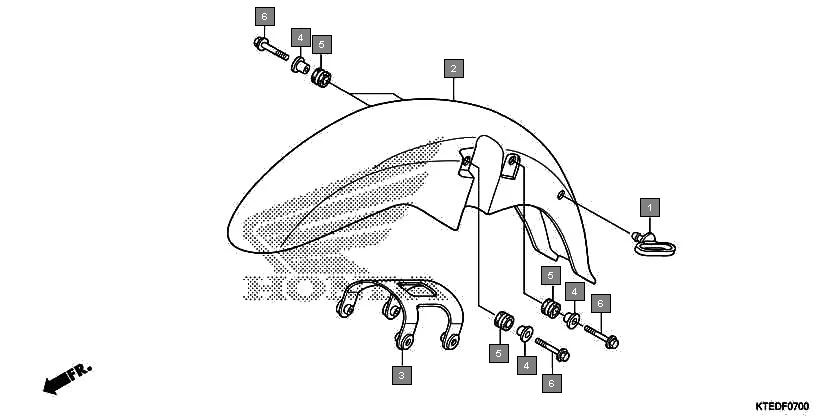

F-7 - FRONT FENDER
HONDA CB Shine/ Shine 125 CBF125C · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-KTE-600 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61100-KTE-740ZC | FENDER, FR. *NH1* BLACK | 1 | |
| 2 | 61100-KTE-740ZE | FENDER, FR. *NHA04M* GENY GRAY METALLIC | 1 | |
| 2 | 61100-KTE-740ZA | FENDER, FR. *R329M* REBEL RED METALLIC | 1 | |
| 2 | 61100-KTE-740ZB | FENDER, FR. *NH411M* FORCE SILVER METALLIC | 1 | |
| 2 | 61100-KTE-740ZD | FENDER, FR. *NHB04M* MONSOON GRAY METALLIC | 1 | |
| 3 | 61102-KTE-600 | STAY, FR. FENDER | 1 | |
| 4 | 61103-KTE-600 | COLLAR, FR. FENDER | 4 | |
| 5 | 61105-KTE-600 | RUBBER, FR. FENDER MOUNTING | 4 | |
| 6 | 96001-06028-00 | BOLT, FLANGE, SH. 6X28 | 4 | |
