OEM Part
OEM Part
52200-KTE-D00
SWINGARM SUB ASSY., RR.
Qty Required: 1
Ref #10 in Assembly
Part of Assembly
F-23
SWINGARM
15 parts in this assembly

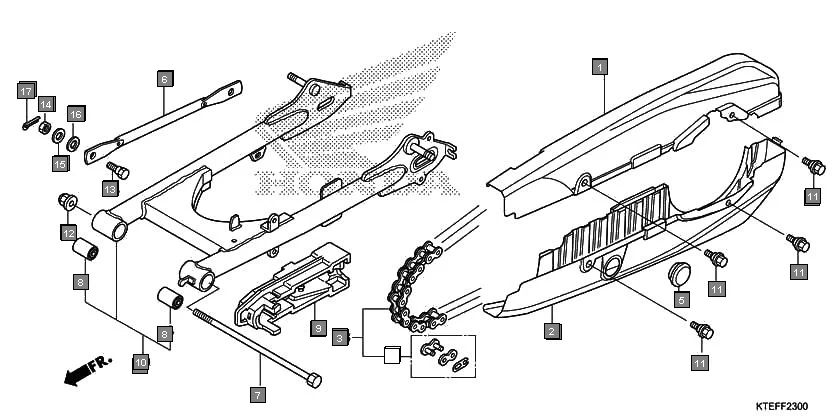

Assembly Diagram
Ref #10
Supported Vehicles5
Related Parts
40510-KTE-650
CASE, DRIVE CHAIN UPPER
40520-KTE-650
CASE, DRIVE CHAIN LOWER
40530-KTE-601
CHAIN, DRIVE(420-116)(LGB)
40530-KTE-912
CHAIN, DRIVE(420-116)(DID)
40531-KTE-912
JOINT, DRIVE CHAIN(LGB)
40531-KWB-601
JOINT, DRIVE CHAIN(DAIDO)
