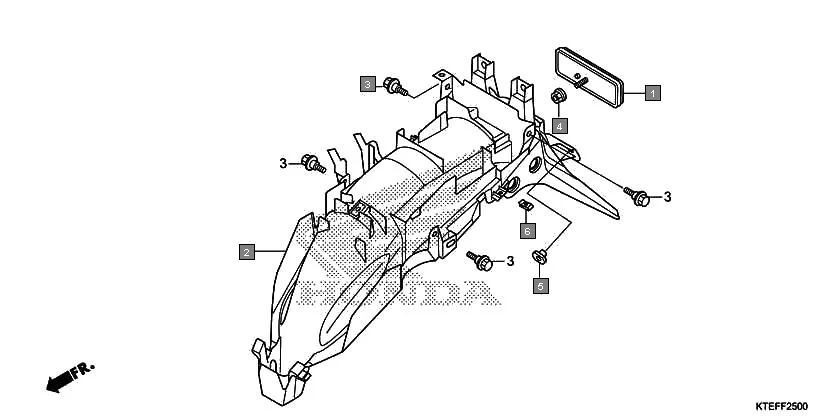

F-25 - REAR FENDER
HONDA CB Shine/ Shine 125 CBF125BH · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 2 | 80101-KTE-650 | FENDER, RR. | 1 | |
| 3 | 90111-162-000 | BOLT, FLANGE, 6MM | 4 | |
| 4 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 5 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 6 | 90344-KTE-910 | NUT, CLIP, 4MM | 2 | |
