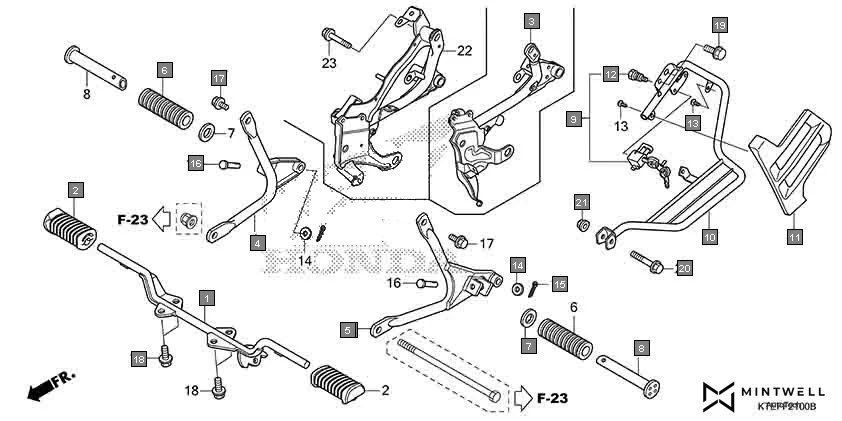

F-21 - STEP
HONDA CB Shine/ Shine 125 CBF125BH · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50610-KTE-D00 | BAR COMP., STEP | 1 | |
| 1 | 50610-KTE-D20 | BAR COMP., STEP | 1 | |
| 2 | 50660-KTE-D00 | RUBBER, STEP | 2 | |
| 3 | 50701-KTE-D20 | BRACKET COMP., R. PILLION STEP | 1 | |
| 4 | 50701-KTE-910 | BRACKET COMP., R. PILLION STEP | 1 | |
| 5 | 50702-KTE-910 | BRACKET COMP., L. PILLION STEP | 1 | |
| 6 | 50710-KTE-910 | RUBBER, PILLION STEP | 2 | |
| 7 | 50712-405-000 | WASHER, PILLION STEP | 2 | |
| 8 | 50715-405-000 | BAR COMP., STEP PILLION | 2 | |
| 9 | 50730-K14-900 | HOLDER SET, HELMET | 1 | |
| 10 | 51103-KTE-650 | GUARD A, SARI | 1 | |
| 11 | 51104-K14-900 | GUARD B, SARI | 1 | |
| 12 | 90107-449-000 | BOLT, HELMET HOLDER SETTING | 1 | |
| 13 | 93903-35220 | SCREW, TAPPING, 5X12 | 2 | |
| 14 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 15 | 94201-16120 | PIN, SPLIT, 1.6 X 12 | 2 | |
| 16 | 90131-KWP-F00 | PIN, PILLION STEP | 2 | |
| 17 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
| 18 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
| 19 | 95701-08020-07 | BOLT, FLANGE, 8 X 20 | 2 | |
| 20 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 21 | 94050-08000 | NUT, FLANGE, 8MM | 1 | |
