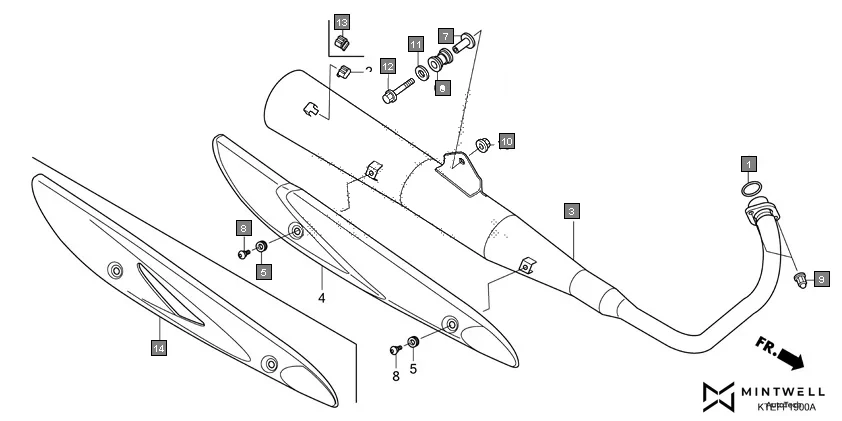

F-19 - EXHAUST MUFFLER
HONDA CB Shine/ Shine 125 CBF125BH · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18291-KSP-901 | GASKET, EX. PIPE | 1 | |
| 3 | 18300-KTE-D00 | MUFFLER COMP., EX. | 1 | |
| 5 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 6 | 18421-438-670 | RUBBER, MUFFLER MOUNT | 1 | |
| 7 | 18442-KRC-900 | COLLAR, MUFFLER MOUNT | 1 | |
| 8 | 90113-KYJ-710 | SCREW, PAN, 6X12 | 2 | |
| 9 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 10 | 94050-10000 | NUT, FLANGE, 10MM | 1 | |
| 11 | 94103-10000 | WASHER, PLAIN, 10MM | 1 | |
| 12 | 95801-10055-00 | BOLT, FLANGE, 10X55 | 1 | |
| 13 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 1 | |
| 14 | 18355-KTE-D20 | COVER, MUFFLER | 1 | |
| 14 | 18355-KTE-D00 | COVER, MUFFLER | 1 | |
