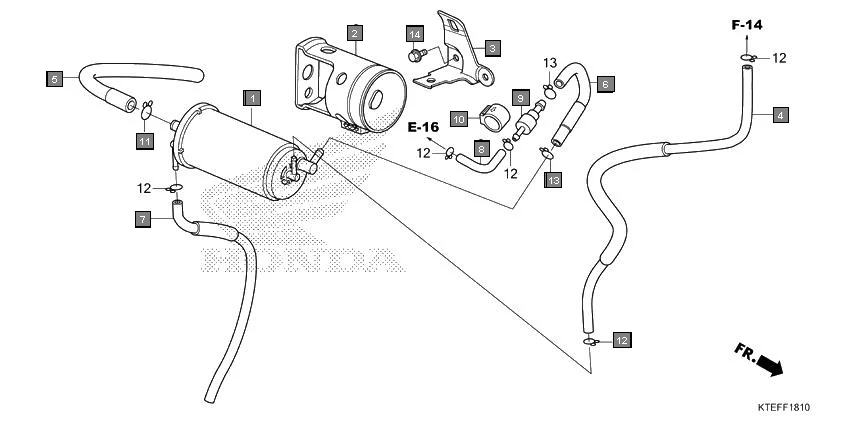

F-18-10 - CANISTER
HONDA CB Shine/ Shine 125 CBF125BH · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17310-KTE-D01 | CANISTER COMP. | 1 | |
| 2 | 17311-KTE-D00 | RUBBER, CANISTER | 1 | |
| 3 | 17315-KTE-D00 | STAY, CANISTER | 1 | |
| 4 | 17411-KTE-D00 | TUBE, CHARGE | 1 | |
| 5 | 17412-KTE-D00 | TUBE, AIR | 1 | |
| 6 | 17413-KTE-D00 | TUBE, CANISTER PURGE | 1 | |
| 7 | 17414-KTE-D00 | TUBE, DRAIN | 1 | |
| 8 | 17415-KTE-D00 | TUBE, CANISTER PURGE | 1 | |
| 9 | 17440-K43-901 | VALVE, ONE WAY | 1 | |
| 10 | 17441-K43-900 | RUBBER, ONE WAY VALVE | 1 | |
| 11 | 90652-MB1-000 | CLIP, TUBE | 1 | |
| 13 | 95002-02139 | CLIP, TUBE(B12.5) | 2 | |
