OEM Part
OEM Part
17500-K1C-A80ZC
TANK ASSY., FUEL(WL) *TYPE1*
Qty Required: 1
Ref #9 in Assembly
Part of Assembly
F-21

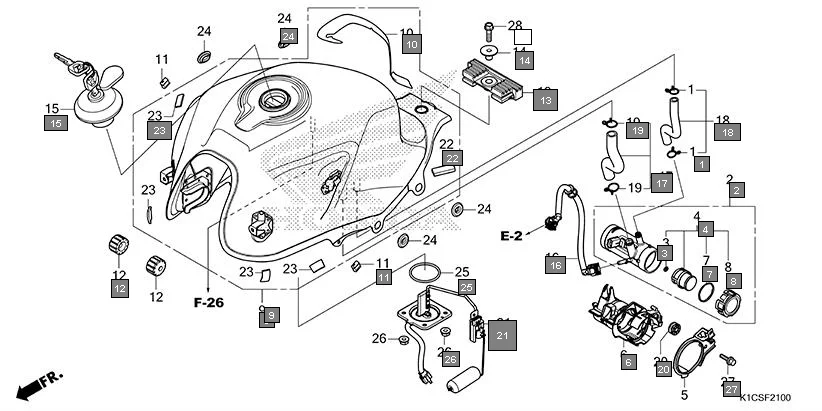

FUEL TANK/FUEL PUMP
29 parts in this assembly
Assembly Diagram
Ref #9
Supported Vehicles2
Related Parts
15771-KV6-000
CLIP, OIL DRAIN TUBE
16700-K0Y-D01
PUMP UNIT, FUEL
16706-KVB-S51
O-RING(P7)
16707-K0Y-D01
FILTER SET
16714-K0V-A00
CASE, FUEL PUMP
16723-K0Y-D01
O-RING, FILTER
