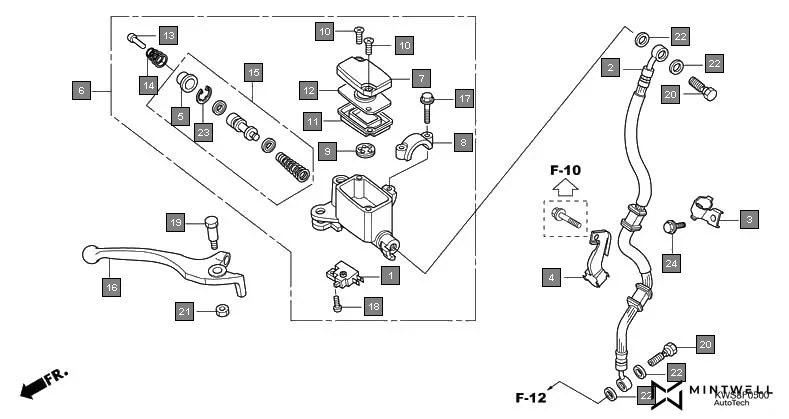

F-5 - FRONT BRAKE MASTER CYLINDER
HONDA CB Twister CBF110MSE · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35340-KCK-900 | SWTHCH ASSY., FR STOP | 1 | |
| 2 | 45126-KWS-921 | HOSE COMP., FR. BRAKE | 1 | |
| 3 | 45155-KWS-920 | CLAMPER A, FR. BRAKE HOSE | 1 | |
| 4 | 45156-KSP-900 | CLAMPER B, FR. BRAKE HOSE | 1 | |
| 5 | 45504-KCC-841 | BOOT COMP. | 1 | |
| 6 | 45510-KVT-911 | M/C SUB ASSY FR BRK | 1 | |
| 7 | 45513-KCC-841 | CAP, MASTER CYLINDER | 1 | |
| 8 | 45517-KCC-841 | HOLDER MASTER CYLINDER | 1 | |
| 9 | 45518-KCC-841 | SEPARETOR COMP. | 1 | |
| 10 | 45519-KCC-841 | SCREW FLAT | 2 | |
| 11 | 45520-KCC-841 | DIAPHRAGM | 1 | |
| 12 | 45521-KCC-841 | PLATE, DIAPHRAGM | 1 | |
| 13 | 45525-KCC-841 | PUSH ROD | 1 | |
| 14 | 45526-KCC-841 | SPRING , PUSH ROD | 1 | |
| 15 | 45530-KCC-841 | CYLINDER SET MASTER | 1 | |
| 16 | 53175-KSP-900 | LEVER, R STRG. HANDLE | 1 | |
| 17 | 90111-KCC-841 | BOLT,FLANGE 6 X 25 | 2 | |
| 18 | 90112-KCC-841 | SCREW,PAN,4X8 | 1 | |
| 19 | 90114-KCC-841 | BOLT, HANDLE LEVER | 1 | |
| 20 | 90145-GW3-981 | BOLT, OIL, 10X22 | 2 | |
| 21 | 90303-KCC-841 | NUT | 1 | |
| 22 | 90545-300-000 | WASHER ,OIL BOLT | 4 | |
| 23 | 90651-KCC-841 | CIRCLIP | 1 | |
| 24 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 1 | |
