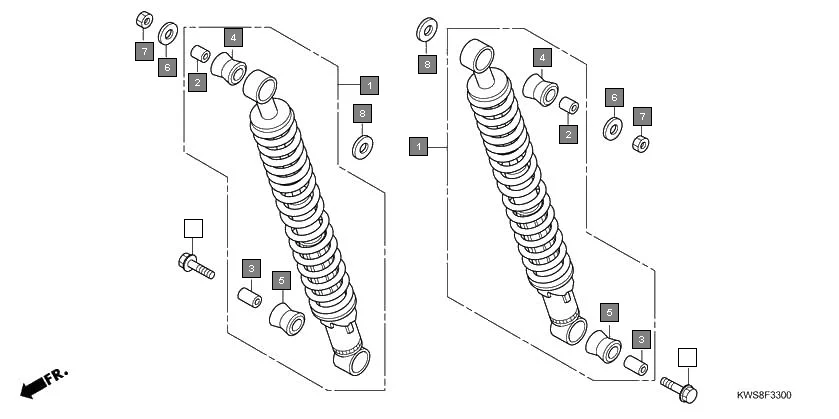

F-33 - REAR CUSHION
HONDA CB Twister CBF110MSE · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KWS-901 | CUSHION ASSY., RR. | 2 | |
| 2 | 52486-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 2 | |
| 3 | 52487-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 2 | |
| 4 | 52489-KWS-901 | BUSH, RUBBER(GABRIEL) | 2 | |
| 5 | 52495-KWS-901 | BUSH, RUBBER | 2 | |
| 6 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 2 | |
| 7 | 94030-10000 | NUT HEX., 10MM | 2 | |
| 8 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
| 9 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
| 9 | 95802-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
