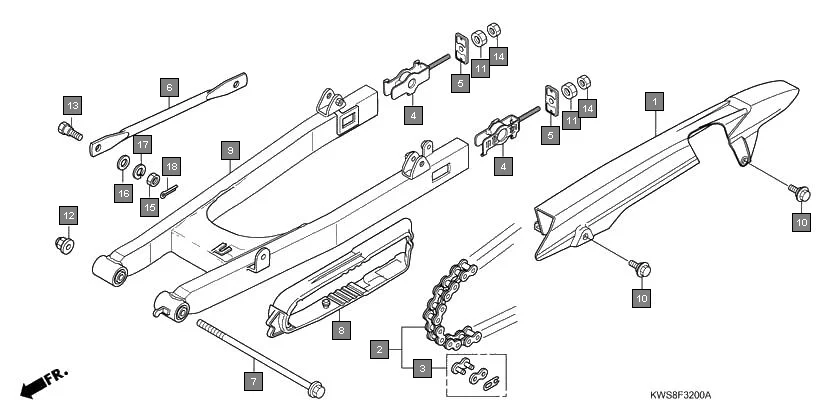

F-32 - SWINGARM
HONDA CB Twister CBF110MSE · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-KWS-900 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40530-KWF-961 | CHAIN, DRIVE(LGB R428HBS-118L) | 1 | |
| 3 | 40531-KWF-961 | JOINT, DRIVE CHAIN(LGB) | 1 | |
| 4 | 40544-KWF-900 | ADJUSTER COMP,R CHAIN | 2 | |
| 5 | 40546-KWF-900 | CAP, SWINGARM END | 2 | |
| 6 | 43431-KTE-910 | ARM, RR. BRAKE STOPPER | 1 | |
| 7 | 52101-KWS-900 | BOLT, SWINGARM PIVOT | 1 | |
| 8 | 52170-KWS-900 | SLIDER, CHAIN | 1 | |
| 9 | 52200-KWS-900 | SWINGARM SUB ASSY., RR. | 1 | |
| 10 | 90111-KWF-900 | BOLT, FLANGE 6MM | 2 | |
| 11 | 90302-KBP-900 | NUT SPL 6 MM | 2 | |
| 12 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 12 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 92812-10000 | BOLT A BRAKE STOPPER ARM | 1 | |
| 14 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 15 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 16 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 17 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 18 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
