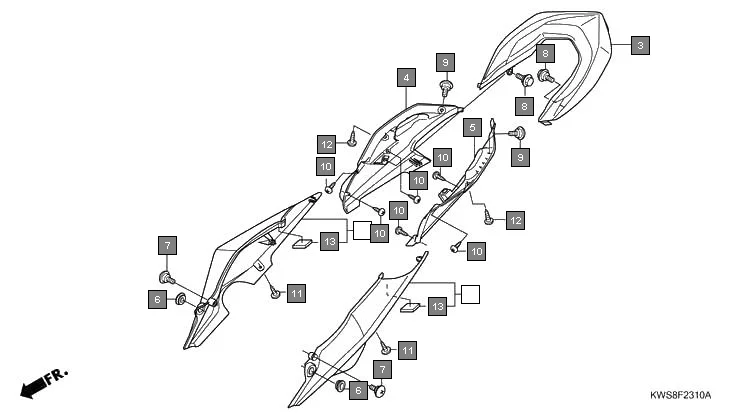

F-23-10 - REAR COWL
HONDA CB Twister CBF110MSE · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77210-KWS-900ZC | COWL, R. RR. *NHA95M* SWORD SILVER METALLIC | 1 | |
| 1 | 77210-KWS-900ZB | COWL, R. RR. *R344* RISING RED | 1 | |
| 1 | 77210-KWS-900ZA | COWL, R. RR. *NH1* BLACK | 1 | |
| 2 | 77220-KWS-900ZC | COWL, L. RR. *NHA95M* SWORD SILVER METALLIC | 1 | |
| 2 | 77220-KWS-900ZB | COWL, L. RR. *R344* RISING RED | 1 | |
| 2 | 77220-KWS-900ZA | COWL, L. RR. *NH1* BLACK | 1 | |
| 3 | 77230-KWS-900 | COWL, RR. CENTER | 1 | |
| 4 | 77250-KWS-900 | BASE, R. RR. COWL | 1 | |
| 5 | 77260-KWS-900 | BASE, L. RR. COWL | 1 | |
| 6 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 7 | 90105-MN5-000 | SCREW INNER PANEL | 2 | |
| 8 | 90111-KAN-900 | BOLT, FLANGE, 6MM | 2 | |
| 9 | 90150-MBG-000 | SCREW, PAN, 5X15 | 2 | |
| 10 | 93903-24320 | SCREW, TAPPING, 4X12 | 6 | |
| 11 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
| 13 | 50386-130-690 | CUSHION C, BATTERY | 2 | |
