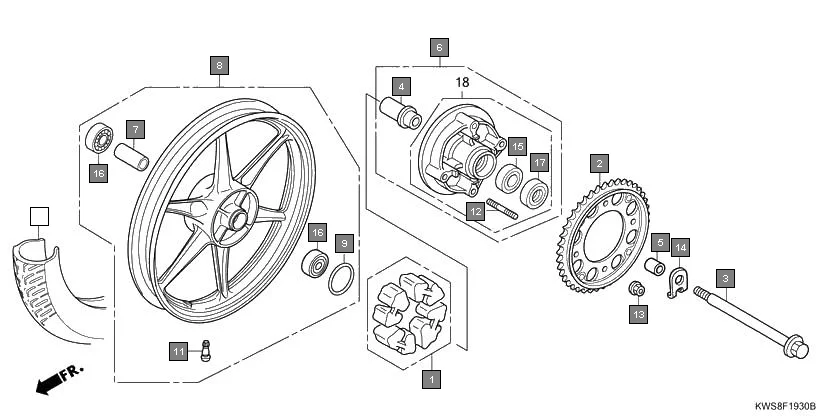

F-19-30 - REAR WHEEL
HONDA CB Twister CBF110MSE · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KWS-901 | DAMPER SET, WHEEL | 1 | |
| 2 | 41200-KWF-950 | SPROCKET COMP., FINAL DRIVEN (42T) | 1 | |
| 3 | 42301-KWS-900 | AXLE, RR. WHEEL | 1 | |
| 4 | 42303-KWF-950 | SLEEVE, RR. WHEEL | 1 | |
| 5 | 42304-KWS-900 | COLLAR, RR. AXLE SLEEVE | 1 | |
| 6 | 42615-KWS-900ZA | FLANGE SUB ASSY., FINAL DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 42620-KTE-950 | COLLAR,RR AXLE DIST | 1 | |
| 8 | 42650-KWS-900 | WHEEL SUB ASSY., RR. | 1 | |
| 9 | 42653-001-004 | O-RING, 40.5X3 (NIPPON DUST KEEPER) | 1 | |
| 10 | 42711-KWS-901 | TIRE, RR.(TVS) (80/100-17 M/C 53P) | 1 | |
| 10 | 42711-KWS-902 | TIRE, RR.(MRF) (80/100-17 M/C 53P) | 1 | |
| 11 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 12 | 90128-KTE-910 | BOLT,STUD,8X20 | 4 | |
| 13 | 90309-KTE-911 | NUT,FLG PT 8MM | 4 | |
| 15 | 91051-KWF-901 | BRG.BALL RADIAL 6203 (UU) | 1 | |
| 15 | 96150-62030-10 | BEARING, BALL RADIAL, 6203 (UU) | 1 | |
| 16 | 91052-KWF-901 | BEARING, RADIAL BALL, 6301U (NSK) | 2 | |
| 16 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 17 | 91251-KGH-901 | DUST SEAL,27X40X4.5 | 1 | |
