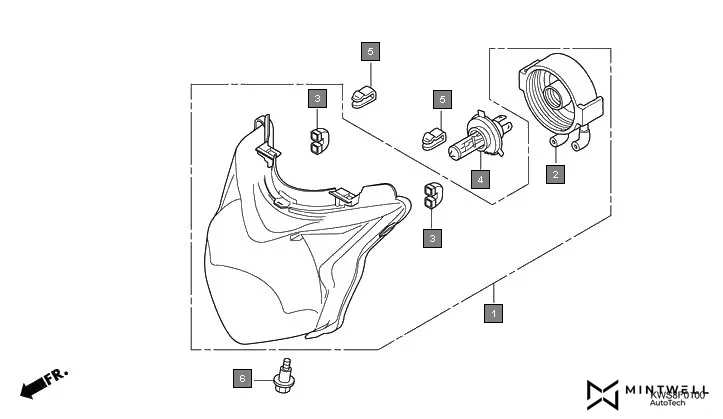

F-1 - HEADLIGHT
HONDA CB Twister CBF110MSE · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KWS-901 | HEADLIGHT UNIT | 1 | |
| 2 | 33112-KWS-901 | COVER, RUBBER | 1 | |
| 3 | 33706-KWS-901 | TUBE | 2 | |
| 4 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 4 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 5 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 6 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
