OEM Part
OEM Part
94591-46000
CLIP, WIRE
Qty Required: 2
Ref #10 in Assembly
Part of Assembly

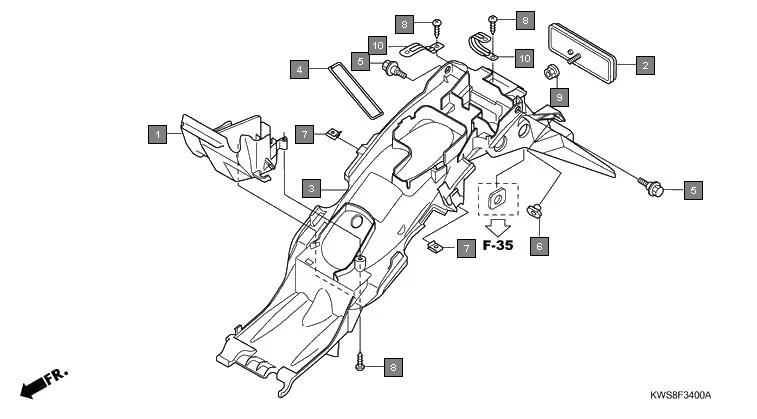

F-34
REAR FENDER
8 parts in this assembly
Assembly Diagram
Ref #10
Supported Vehicles7
Related Parts
17234-KWS-900
COVER, DUCT
33741-KPL-901
REFLECTOR, REFLEX
80100-KWS-900ZA
FENDER SET, RR.(WL) *TYPE1*
83606-KWS-901
BAND, TOOL
90311-KTE-910
NUT REAR FENDER
90344-KTE-910
NUT, CLIP, 4MM
