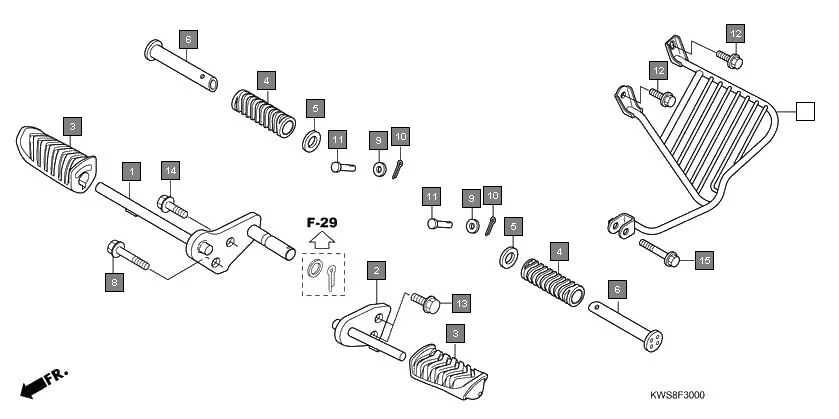

F-30 - STEP
HONDA CB Twister CBF110C · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50610-KWS-900 | BRACKET COMP., R. STEP | 1 | |
| 2 | 50620-KWS-900 | BRACKET COMP., L. STEP | 1 | |
| 3 | 50661-KWS-900 | RUBBER, STEP | 2 | |
| 4 | 50711-KWS-900 | RUBBER, PILLION STEP | 2 | |
| 5 | 50712-405-000 | WASHER, PILLION STEP | 2 | |
| 6 | 50715-405-000 | BAR COMP., STEP PILLION | 2 | |
| 7 | 51103-KWS-900 | GUARD, SARI | 1 | |
| 8 | 90155-KWS-900 | BOLT, FLANGE, 8X35 | 1 | |
| 10 | 94201-16120 | PIN, SPLIT, 1.6 X 12 | 2 | |
| 11 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 12 | 95701-08012-08 | BOLT, FLANGE, 8X12 | 2 | |
| 12 | 95702-08012-08 | BOLT, FLANGE, 8X12 | 2 | |
| 14 | 95701-08020-07 | BOLT, FLANGE, 8 X 20 | 1 | |
| 14 | 95702-08020-07 | BOLT, FLANGE, 8X20 | 1 | |
