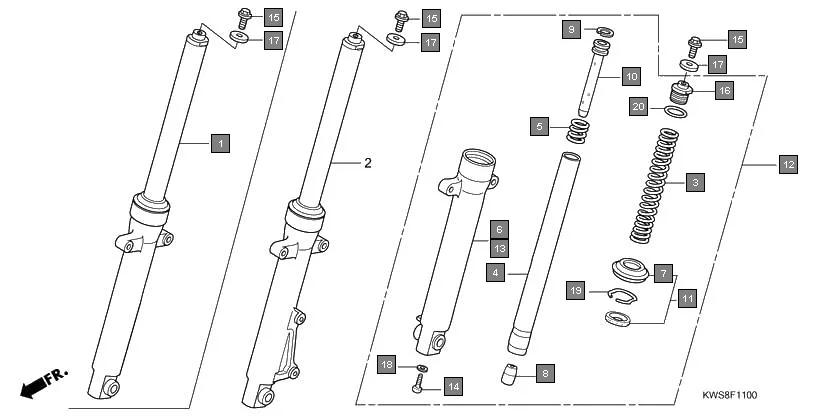

F-11 - FRONT FORK
HONDA CB Twister CBF110C · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-KWS-901 | FORK ASSY., R. FR. | 1 | |
| 3 | 51401-KWS-901 | SPRING, FR. FORK | 2 | |
| 4 | 51410-KWS-901 | PIPE COMP., FR. FORK | 2 | |
| 5 | 51412-KAG-901 | SPRING, REBOUND(SHOWA) | 2 | |
| 6 | 51420-KWS-901 | CASE, R. FR. BOTTOM | 1 | |
| 7 | 51425-961-013 | DUST SEAL(SHOWA) | 2 | |
| 8 | 51432-KST-901 | PIECE, OIL LOCK | 2 | |
| 9 | 51437-KVN-901 | RING, PISTON | 2 | |
| 10 | 51440-KWS-901 | PIPE, SEAT | 2 | |
| 11 | 51490-KWS-901 | SEAL SET, FR. FORK | 2 | |
| 12 | 51500-KWS-901 | FORK ASSY., L. FR. | 1 | |
| 13 | 51520-KWS-901 | CASE, L. FR. BOTTOM | 1 | |
| 14 | 90116-KAG-901 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 15 | 90123-KRM-860 | BOLT, FR. FORK | 2 | |
| 16 | 90123-KSP-901 | BOLT, A FRONT FORK | 2 | |
| 17 | 90521-KSP-900 | WASHER, 10.3MM | 2 | |
| 18 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 19 | 90601-GF5-731 | RING OIL SEAL STOP | 2 | |
| 20 | 91356-KAG-901 | O-RING(SHOWA) | 2 | |
