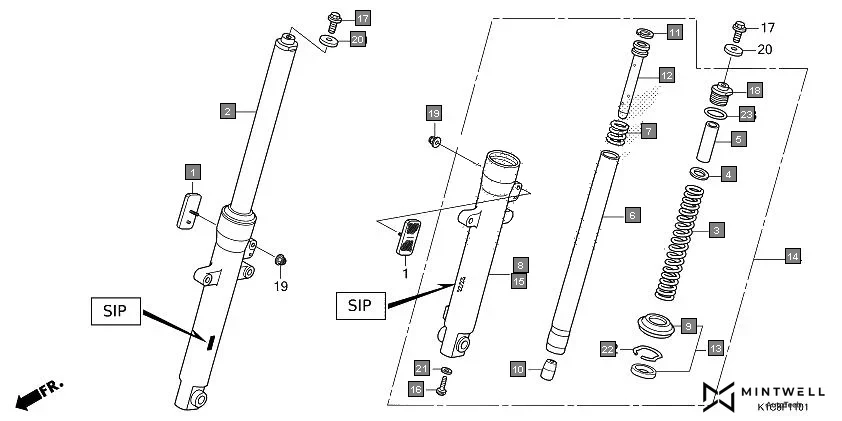

F-11-1 - FRONT FORK(SHOWA)

HONDA Livo CBF110BN · 23 parts

Parts in This Assembly (23)

Ref #	Part Number	Description	Qty
1	33740-KZK-951	REFLECTOR, FR. SIDE REFLEX	2
2	51400-K0N-D92	FORK ASSY., R. FR.(SHOWA)	1
3	51401-K14-901	SPRING, FR. FORK(SHOWA)	2
4	51403-447-731	PLATE, SPRING JOINT(SHOWA)	2
5	51403-KCC-901	COLLAR, SPRING(SHOWA)	2
6	51410-K0V-A01	PIPE COMP., FR. FORK. (SHOWA)	2
7	51412-KAG-901	SPRING, REBOUND(SHOWA)	2
8	51420-K0N-D92	CASE, R. FR. BOTTOM(SHOWA)	1
9	51425-961-013	DUST SEAL(SHOWA)	2
10	51432-KST-901	PIECE, OIL LOCK	2
11	51437-KVN-901	RING, PISTON	2
12	51440-K14-901	PIPE, SEAT	2
13	51490-KWS-901	SEAL SET, FR. FORK	2
14	51500-K0N-D92	FORK ASSY., L. FR.(SHOWA)	1
15	51520-K0N-D92	CASE, L. FR. BOTTOM(SHOWA)	1
16	90116-KAG-901	BOLT, SOCKET, 8MM(SHOWA)	2
17	90123-KRM-860	BOLT, FR. FORK	2
18	90123-KSP-901	BOLT, A FRONT FORK	2
19	90301-KWN-901	NUT, U, 5MM(FUJI SEIMITSU).....	2
20	90521-KSP-900	WASHER, 10.3MM	2
21	90544-439-930	WASHER, SPECIAL, 8 MM	2
22	90601-GF5-731	RING OIL SEAL STOP	2
23	91356-KAG-901	O-RING(SHOWA)	2
