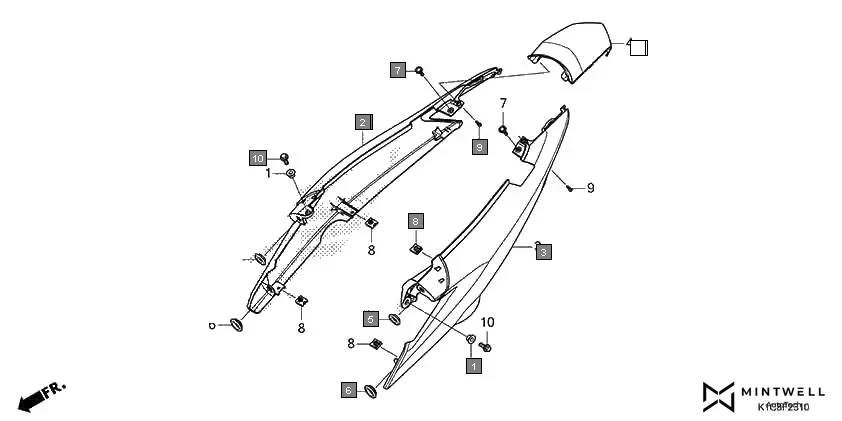

F-23-10 - SIDE COWL
HONDA Livo CBF110BER · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61101-K55-600 | COLLAR, FR. FENDER SETTING | 2 | |
| 2 | 77261-K1C-D00ZB | COWL, R. SIDE(WOL) *NHC44M* MAT FROZEN SILVER METALLIC 2 | 1 | |
| 2 | 77261-K1C-D00ZD | COWL, R. SIDE(WOL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 2 | 77260-K1C-DQ0ZG | COWL SET, R. SIDE(WL) *TYPE1* | 1 | |
| 2 | 77260-K1C-DQ0ZH | COWL SET, R. SIDE(WL) *TYPE3 1* | 1 | |
| 2 | 77260-K1C-DQ0ZJ | COWL SET, R. SIDE(WL) *TYPE2 1* | 1 | |
| 3 | 77271-K1C-D00ZB | COWL, L. SIDE(WOL) *NHC44M* MAT FROZEN SILVER METALLIC 2 | 1 | |
| 3 | 77271-K1C-D00ZD | COWL, L. SIDE(WOL) *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 77270-K1C-DQ0ZG | COWL SET, L. SIDE(WL) *TYPE1* | 1 | |
| 3 | 77270-K1C-DQ0ZH | COWL SET, L. SIDE(WL) *TYPE3 1* | 1 | |
| 3 | 77270-K1C-DQ0ZJ | COWL SET, L. SIDE(WL) *TYPE2 1* | 1 | |
| 4 | 77280-K1C-D00ZB | COWL SET, RR. CENTER(WL) *TYPE7* | 1 | |
| 4 | 77280-K1C-D00ZC | COWL SET, RR. CENTER(WL) *TYPE6* | 1 | |
| 4 | 77280-K1C-D00ZD | COWL SET, RR. CENTER(WL) *TYPE5* | 1 | |
| 4 | 77280-K1C-D00ZF | COWL SET, RR. CENTER(WL) *TYPE3* | 1 | |
| 4 | 77280-K1C-D00ZH | COWL SET, RR. CENTER(WL) *TYPE1* | 1 | |
