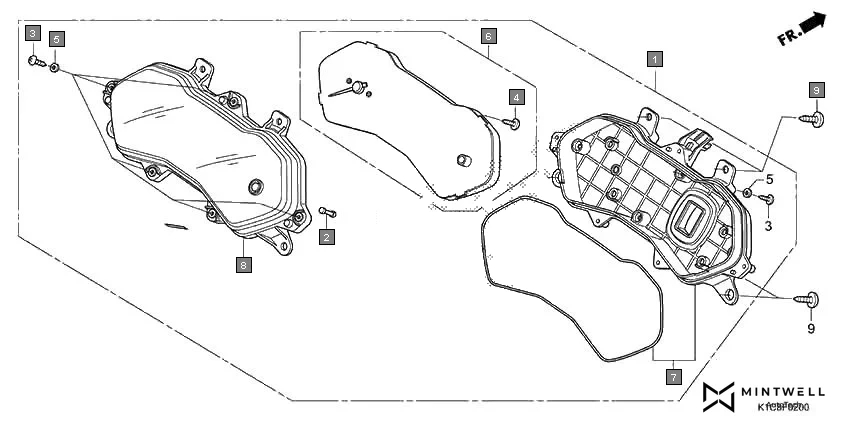

F-2 - METER
HONDA Livo CBF110BER · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K1C-D01 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37202-K1C-D01 | ROD, SWITCH EXTENSION | 1 | |
| 3 | 37203-K55-951 | SCREW, TAPPING, 4X15 | 9 | |
| 4 | 37204-K55-951 | SCREW, TAPPING, 4X11 | 4 | |
| 5 | 37205-K55-951 | WASHER | 9 | |
| 6 | 37210-K1C-D01 | SPEEDOMETER COMP. | 1 | |
| 7 | 37212-K1C-D01 | CASE ASSY., UNDER | 1 | |
| 8 | 37213-K1C-D01 | LENS ASSY. | 1 | |
| 9 | 93903-35310 | SCREW TAPPING 5X16 | 4 | |
