OEM Part
OEM Part
17500-K1C-DU0ZA
TANK ASSY,FUEL(WOL) *NH303M* MAT AXIS GRAY METALLIC
Qty Required: 1
Ref #9 in Assembly
Part of Assembly
F-21
FUEL TANK/FUEL PUMP
30 parts in this assembly

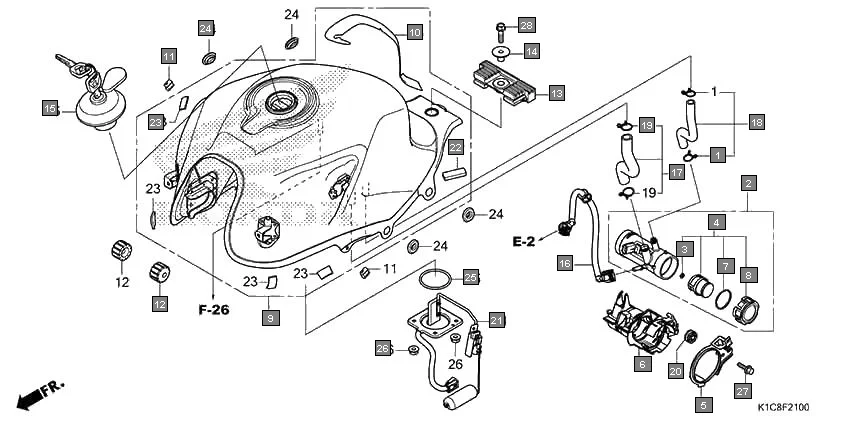

Assembly Diagram
Ref #9
Supported Vehicles8
Related Parts
15771-KV6-000
CLIP, OIL DRAIN TUBE
16700-K0Y-D01
PUMP UNIT, FUEL
16706-KVB-S51
O-RING(P7)
16707-K0Y-D01
FILTER SET
16712-K0V-A00
STAY COMP., FUEL PUMP
16714-K0V-A00
CASE, FUEL PUMP
