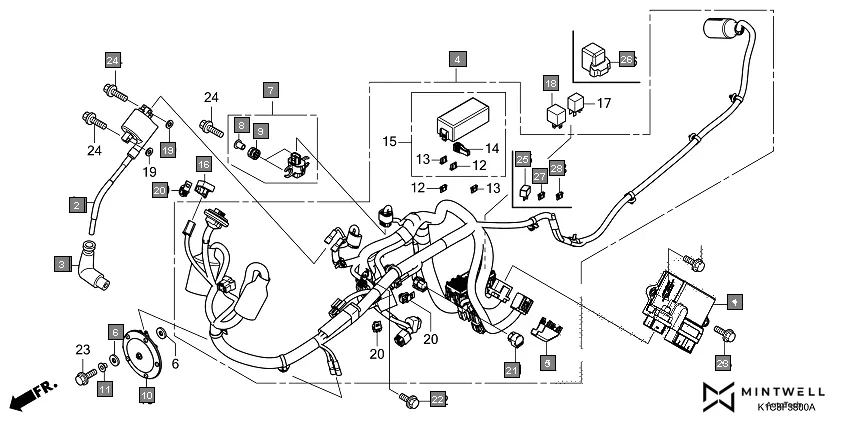

F-38 - WIRE HARNESS
HONDA Livo CBF110BEN · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30400-K1C-DC1 | CONTROL UNIT, ENGINE | 1 | |
| 2 | 30500-K1E-601 | COIL ASSY., IGNITION(JAGDISH) (J33) | 1 | |
| 2 | 30500-K1E-D01 | COIL ASSY., IGNITION(WINGS) (W33) | 1 | |
| 3 | 30700-K14-901 | CAP ASSY., NOISE SUPPRESSOR (KUNAL) | 1 | |
| 3 | 30700-KTE-601 | CAP ASSY., NOISE SUPPRESSOR(ANU) | 1 | |
| 4 | 32100-K1C-DC0 | HARNESS, WIRE | 1 | |
| 5 | 32153-K0N-D01 | COVER, WATER PROOF COUPLER | 1 | |
| 6 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 7 | 35160-KRE-G01 | SENSOR ASSY., BANK ANGLE | 1 | |
| 8 | 35162-KRE-G00 | COLLAR | 2 | |
| 9 | 35163-KRE-G00 | GROMMET | 2 | |
| 10 | 38110-K0N-D81 | HORN COMP. | 1 | |
| 11 | 38117-KYJ-T00 | COLLAR, HORN SETTING | 1 | |
| 16 | 38301-K0L-D01 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 | |
| 18 | 38502-KWN-901 | RELAY COMP., POWER(5P) (PANASONIC) | 1 | |
| 19 | 90502-198-900 | WASHER , BRAKE ROD | 2 | |
| 20 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 2 | |
| 21 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 25 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 26 | 38506-K0N-D80 | COVER, STARTER RELAY | 1 | |
| 27 | 98200-40750 | FUSE, MINI(7.5A) | 5 | |
| 28 | 98200-41500 | FUSE, MINI(15A) | 2 | |
