HONDA OEM Part

90312-GFM-970

COLLAR, BODY COVER

Qty Required: 5 Ref #6 in Assembly

Part of Assembly

F-38-20
IGNITION COIL
8 parts in this assembly

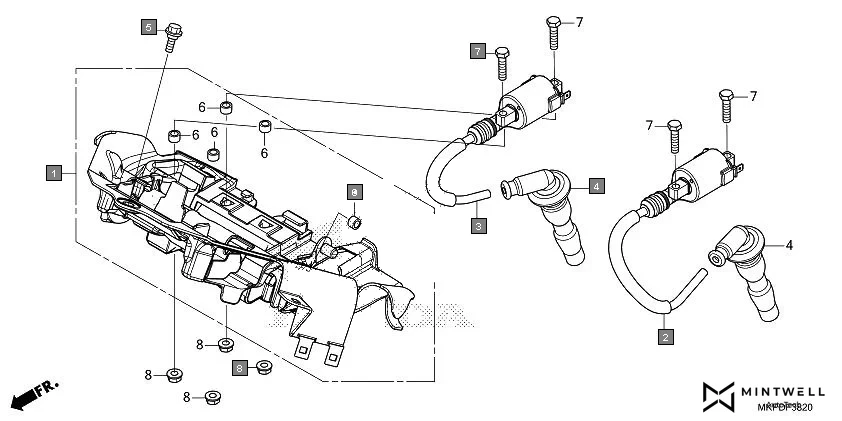

Assembly Diagram

F-38-20 IGNITION COIL diagram showing 90312-GFM-970
Ref #6

Supported Vehicles1

HHONDA 500X CB500XAM
HONDA 500X CB500XAM
Current

Related Parts

19125-MGZ-J00
TRAY, IGNITION COIL
30510-MGZ-J01
COIL COMP., L. IGNITION
30520-MGZ-J01
COIL COMP., R. IGNITION
30700-MGZ-J01
CAP ASSY., NOISE SUPPRESSOR
90111-162-000
BOLT, FLANGE, 6MM
92101-06025-0A
BOLT, HEX., 6X25
View all 8 parts in this assembly
