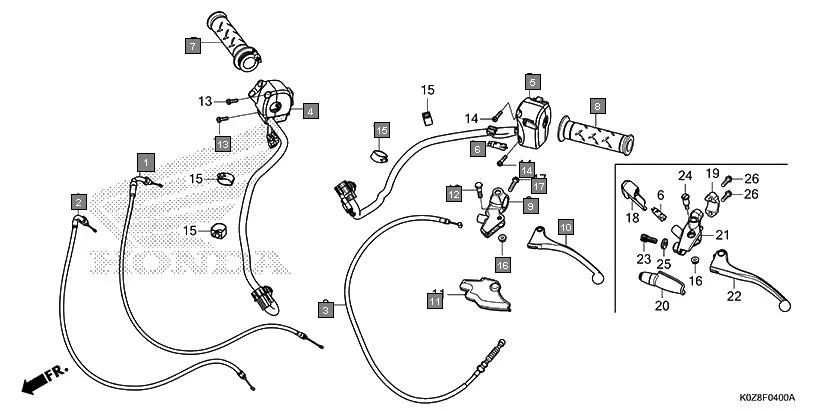

F-4 - HANDLE LEVER/SWITCH/CABLE
HONDA HNESS CB350RSM · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K0Z-901 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-K0Z-901 | CABLE COMP. B, THROTTLE | 1 | |
| 3 | 22870-K0Z-911 | CABLE COMP., CLUTCH | 1 | |
| 4 | 35130-K0Z-901 | SWITCH ASSY., STARTER & ENGINE STOP & HAZARD | 1 | |
| 5 | 35200-K0Z-901 | SWITCH ASSY., WINKER | 1 | |
| 6 | 35330-KWS-901 | SWITCH ASSY., CLUTCH | 1 | |
| 7 | 53140-K0N-D00 | GRIP COMP., THROTTLE | 1 | |
| 8 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 9 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 10 | 53178-K0Z-900 | LEVER COMP., L. HANDLE | 1 | |
| 11 | 53179-KWF-950 | COVER, L. HANDLE LEVER | 1 | |
| 12 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 13 | 90129-K0Z-900 | SCREW-WASHER, 5X16 | 2 | |
| 14 | 90133-K0Z-900 | SCREW-WASHER, 5X25 | 2 | |
| 17 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
