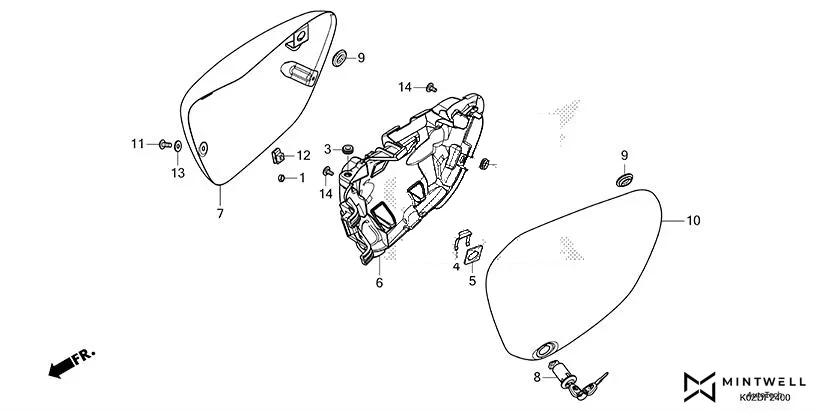

F-24 - SIDE COVER(CB350D/DS)
HONDA HNESS CB350DS · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17223-KVX-600 | COLLAR, AIR CLEANER | 1 | |
| 4 | 75581-GN8-920 | SET SPG LOCK KEY | 1 | |
| 5 | 83501-K0Z-900 | PLATE, SIDE COVER | 1 | |
| 6 | 83520-K0Z-900 | COVER, R. SIDE INNER | 1 | |
| 7 | 83530-K0Z-DH0ZC | COVER SET, R. SIDE(WL)*NHC75P*PEARL DEEP GROUND GRAY | 1 | |
| 7 | 83530-K0Z-DH0ZF | COVER SET, R. SIDE(WL)*NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 8 | 83550-K0Z-D02 | LOCK, SIDE COVER | 1 | |
| 9 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 10 | 83630-K0Z-DH0ZC | COVER SET, L. SIDE(WL) *NHC75P* PEARL DEEP GROUND GRAY | 1 | |
| 10 | 83630-K0Z-DH0ZF | COVER SET, L. SIDE(WL)*NHB05P*PEARL IGNEOUS BLACK | 1 | |
