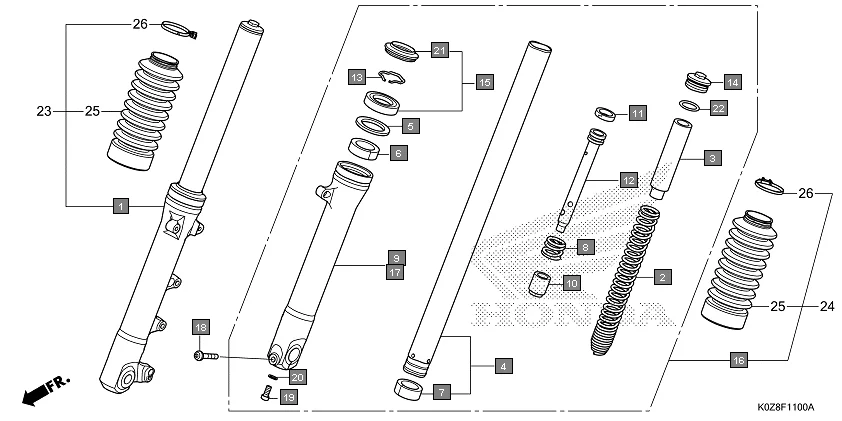

F-11 - FRONT FORK
HONDA HNESS CB350DP · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-K0Z-901 | FORK ASSY., R. FR. | 1 | |
| 2 | 51401-K0Z-901 | SPRING, FR. FORK | 2 | |
| 3 | 51402-MGZ-J01 | COLLAR, SPRING | 2 | |
| 4 | 51410-K0Z-901 | PIPE COMP., FR. FORK | 2 | |
| 5 | 51412-MB4-003 | RING, BACK UP(SHOWA) | 2 | |
| 6 | 51414-MFJ-A51 | BUSH, GUIDE | 2 | |
| 7 | 51415-MFJ-A51 | BUSH, SLIDER | 2 | |
| 8 | 51416-MKL-D81 | SPRING, FR. REBOUND | 2 | |
| 9 | 51420-K0Z-901 | CASE, R. FR. BOTTOM | 1 | |
| 10 | 51432-K0Z-901 | PIECE, OIL LOCK | 2 | |
| 11 | 51437-KV3-701 | RING, PISTON | 2 | |
| 12 | 51440-K0Z-901 | PIPE, SEAT | 2 | |
| 13 | 51447-KA4-711 | RING, OIL SEAL STOPPER(SHOWA) | 2 | |
| 14 | 51454-K0Z-901 | BOLT, FR. FORK | 2 | |
| 15 | 51490-MKL-D81 | SEAL SET, FR. FORK | 2 | |
| 16 | 51500-K0Z-901 | FORK ASSY., L. FR. | 1 | |
| 17 | 51520-K0Z-901 | CASE, L. FR. BOTTOM | 1 | |
| 18 | 90115-MEE-000 | BOLT, SOCKET, 8X45 | 1 | |
| 19 | 90116-KV3-701 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 20 | 90544-283-000 | WASHER, SPECIAL, 8MM(SHOWA) | 2 | |
| 21 | 91251-MKL-D81 | SEAL, DUST (SHOWA) | 2 | |
| 22 | 91356-KF0-003 | O-RING, 33.2X2.4 | 2 | |
