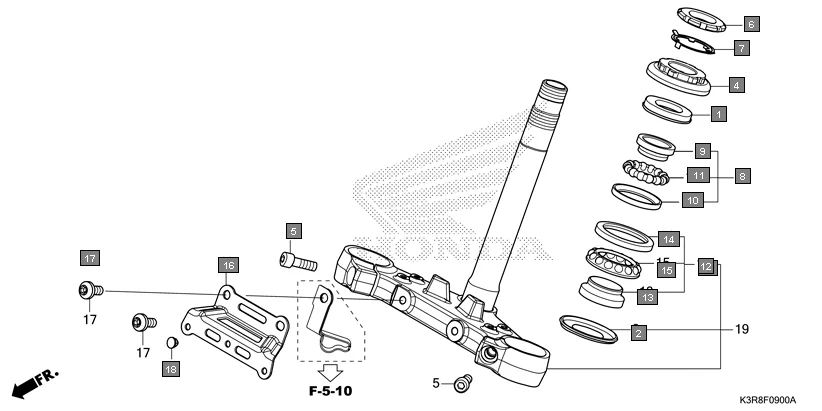

F-9 - STEERING STEM
HONDA CB350 CB350CST · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53213-MB4-771 | DUST SEAL, STEERING UPPER (ARAI) | 1 | |
| 2 | 53214-371-010 | DUST SEAL, STEERING HEAD | 1 | |
| 4 | 53220-K0Z-900 | THREAD COMP., STEERING HEAD TOP | 1 | |
| 5 | 90103-K87-A00 | BOLT, SOCKET, 10X25 | 2 | |
| 6 | 90302-K0Z-910 | THREAD B, STEERING HEAD TOP... | 1 | |
| 7 | 90506-425-830 | WASHER, LOCK | 1 | |
| 8 | 91051-KYJ-711 | BEARING, HEAD PIPE UPPER(SKF) | 1 | |
| 9 | 91052-KYJ-711 | RACE, STEERING CONE | 1 | |
| 10 | 91053-KYJ-711 | RACE, STEERING BALL | 1 | |
| 11 | 91056-KYJ-711 | BALL ASSY., STEERING STEEL | 1 | |
| 12 | 91061-KYJ-711 | BEARING, HEAD PIPE UNDER(SKF) | 1 | |
| 12 | 91061-K0A-DB1 | BEARING, HEAD PIPE UNDER | 1 | |
| 13 | 91062-KYJ-711 | RACE, STEERING CONE | 1 | |
| 14 | 91063-KYJ-711 | RACE, STEERING BALL | 1 | |
| 15 | 91066-KYJ-711 | BALL ASSY., STEERING STEEL | 1 | |
| 16 | 61310-K3R-D00 | STAY, FR. NUMBER | 1 | |
