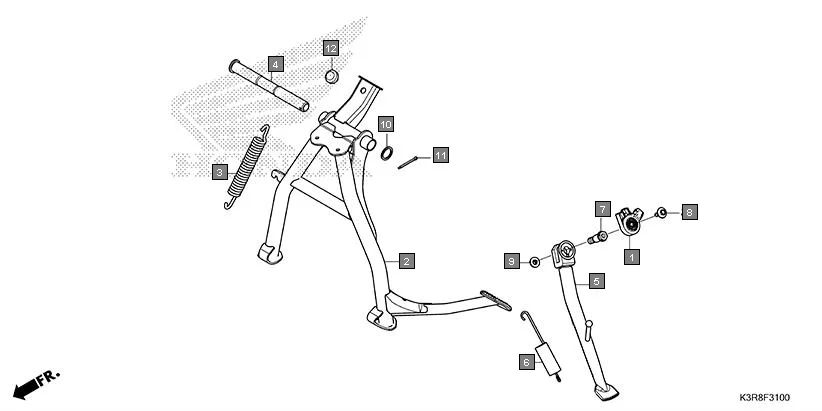

F-31 - SIDE STAND
HONDA CB350 CB350CST · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-K0J-N01 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50500-K0Z-900 | STAND COMP., MAIN | 1 | |
| 3 | 50522-K0Z-900 | SPRING, MAIN STAND | 1 | |
| 4 | 50526-K0Z-900 | SHAFT, MAIN STAND PIVOT | 1 | |
| 5 | 50530-K0Z-900 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50543-K0Z-900 | SPRING ASSY., SIDE STAND | 1 | |
| 7 | 90112-K0Z-900 | BOLT, SIDE STAND PIVOT | 1 | |
| 8 | 90132-KYJ-960 | BOLT, SPECIAL, 6X16 | 1 | |
| 9 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 10 | 90521-028-000 | WASHER, 17X22 | 1 | |
| 11 | 90752-K0Z-900 | PIN, SPLIT(3) | 1 | |
| 12 | 95011-62000 | RUBBER B, STAND STOPPER | 1 | |
