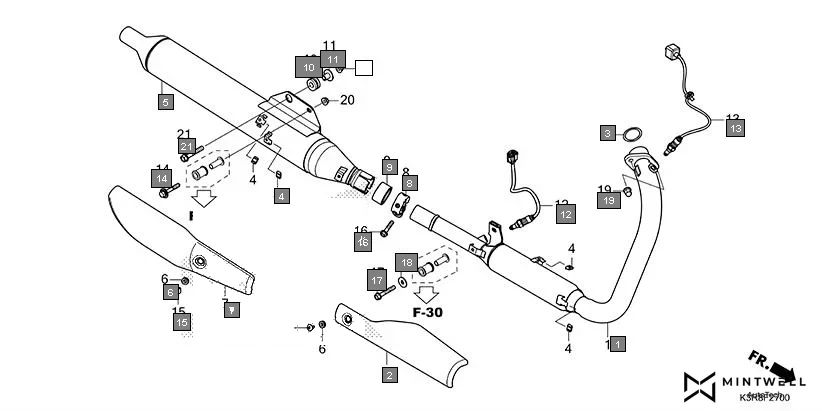

F-27 - EXHAUST MUFFLER
HONDA CB350 CB350CST · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18150-K3R-D00 | PIPE COMP., EX. | 1 | |
| 2 | 18155-K3R-D00 | COVER, EX. PIPE | 1 | |
| 3 | 18291-MM5-860 | GASKET, EX. PIPE | 1 | |
| 4 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 4 | |
| 5 | 18310-K3R-D00 | MUFFLER COMP. | 1 | |
| 6 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 7 | 18355-K3R-D00 | COVER, MUFFLER | 1 | |
| 8 | 18374-ML0-000 | BAND, L. EX. PIPE | 1 | |
| 9 | 18391-MN5-650 | PACKING, MUFFLER | 1 | |
| 10 | 18423-K3R-D00 | RUBBER, MUFFLER MOUNTING | 1 | |
| 11 | 18424-K3R-D00 | COLLAR, MUFFLER MOUNTING | 1 | |
| 12 | 36531-K0P-D61 | SENSOR, OXYGEN(ZFAS-S5.1) | 1 | |
| 13 | 36533-K0Z-D01 | SENSOR, AIR FUEL RATIO | 1 | |
| 14 | 90101-K0P-D00 | BOLT-WASHER, 8X50 | 1 | |
| 15 | 90113-KYJ-710 | SCREW, PAN, 6X12 | 2 | |
| 16 | 90161-ML7-000 | BOLT, FLANGE, 8X35 | 1 | |
| 17 | 90171-K0Z-900 | BOLT, FLANGE, 8X50 | 1 | |
| 18 | 90172-K0Z-900 | WASHER, PLAIN, 8MM | 1 | |
| 19 | 90305-KSP-900 | NUT, 8MM EXP. | 2 | |
| 20 | 94050-08070 | NUT, FLANGE, 8MM | 2 | |
| 21 | 95701-08055-07 | BOLT, FLANGE, 8X55............ | 1 | |
