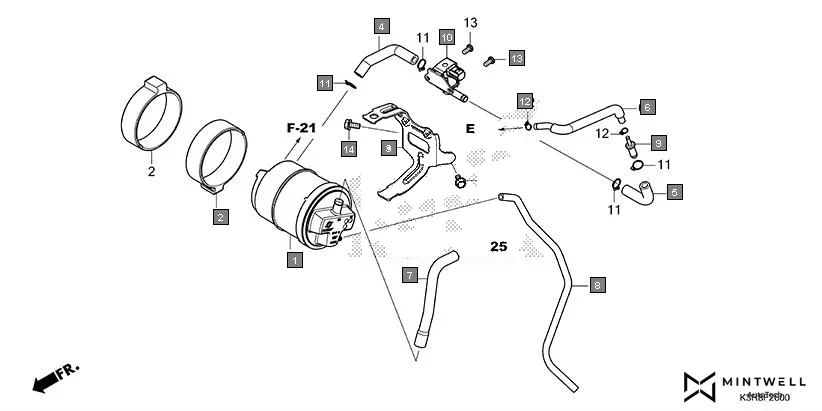

F-26 - CANISTER
HONDA CB350 CB350CST · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17310-K0Z-901 | CANISTER COMP. | 1 | |
| 2 | 17320-K0Z-900 | RUBBER, CANISTER | 2 | |
| 3 | 17325-K0Z-900 | STAY, CANISTER | 1 | |
| 4 | 17412-K0Z-900 | TUBE A, PURGE | 1 | |
| 5 | 17413-K0Z-900 | TUBE B, PURGE | 1 | |
| 6 | 17414-K0Z-900 | TUBE C, PURGE | 1 | |
| 7 | 17415-K0Z-900 | TUBE, AIR | 1 | |
| 8 | 17416-K0Z-900 | TUBE, DRAIN | 1 | |
| 9 | 19126-KM1-010 | JOINT, TUBE | 1 | |
| 10 | 36162-K0Z-901 | VALVE, PURGE CONTROL SOLENOID | 1 | |
| 11 | 90601-KWP-F00 | CLIP, TUBE(B12) | 4 | |
| 12 | 90651-KWP-F00 | CLIP, TUBE(B7) | 2 | |
| 13 | 93500-05010-0H | SCREW, PAN, 5X10 | 2 | |
| 14 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
