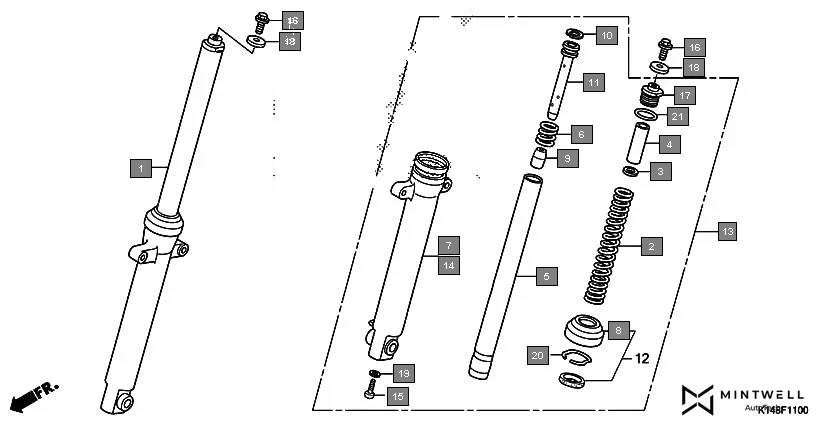

F-11 - FRONT FORK(CB110D/MD)

HONDA Dream Yuga CB110MD · 21 parts

Parts in This Assembly (21)

Ref #	Part Number	Description	Qty
1	51400-K14-902	FORK ASSY. R. FR. (SHOWA)	1
2	51401-K14-901	SPRING, FR. FORK(SHOWA)	2
3	51403-447-731	PLATE, SPRING JOINT(SHOWA)	2
4	51403-KCC-901	COLLAR, SPRING(SHOWA)	2
5	51410-K14-901	PIPE COMP., FR. FORK(SHOWA)	2
6	51412-KAG-901	SPRING, REBOUND(SHOWA)	2
7	51420-KTE-A02	CASE, R. FR. BOTTOM	1
8	51425-KST-901	SEAL, DUST	2
9	51432-KST-901	PIECE, OIL LOCK	2
10	51437-KVN-901	RING, PISTON	2
11	51440-K14-901	PIPE, SEAT	2
12	51490-KWA-941	SEAL SET, FR. FORK	2
13	51500-K14-902	FORK ASSY. L. FR. (SHOWA)	1
14	51520-KTE-A02	CASE, L. FR. BOTTOM	1
15	90116-KAG-901	BOLT, SOCKET, 8MM(SHOWA)	2
16	90123-KRM-860	BOLT, FR. FORK	2
17	90123-KSP-901	BOLT, A FRONT FORK	2
18	90521-KSP-900	WASHER, 10.3MM	2
19	90544-439-930	WASHER, SPECIAL, 8 MM	2
20	90601-GF5-731	RING OIL SEAL STOP	2
21	91356-KAG-901	O-RING(SHOWA)	2
