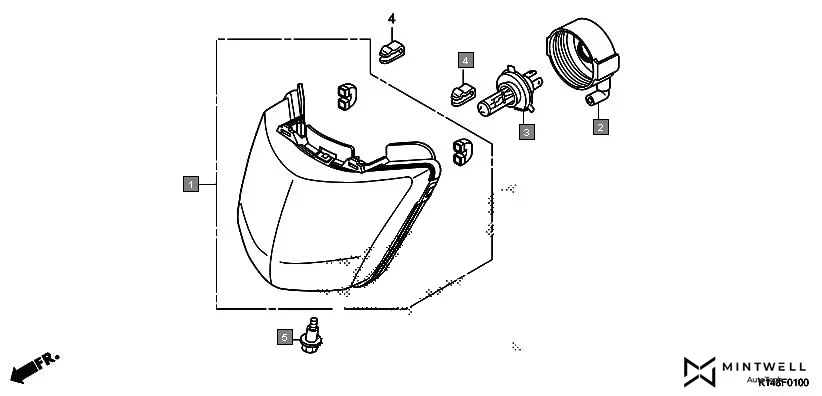

F-1 - HEADLIGHT(CB110D/MD)
HONDA Dream Yuga CB110MD · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KTE-741 | HEADLIGHT UNIT(LUMAX) | 1 | |
| 2 | 33126-K14-901 | COVER, RUBBER | 1 | |
| 3 | 34901-KTE-740 | BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) | 1 | |
| 3 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 4 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 5 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
