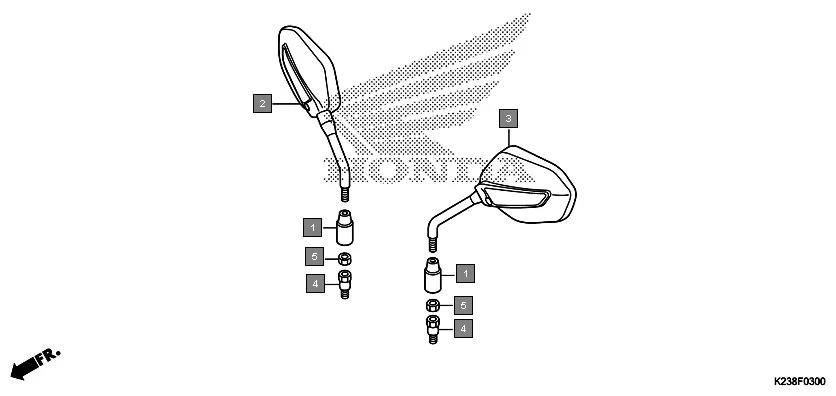

F-3 - MIRROR
HONDA Dream Neo CB110CME · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 2 | 88210-KWS-902 | MIRROR COMP., R. | 1 | |
| 3 | 88220-KWS-902 | MIRROR COMP., L. | 1 | |
| 4 | 90103-KTE-920 | BOLT, ADAPTER, 10MM | 2 | |
| 5 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
