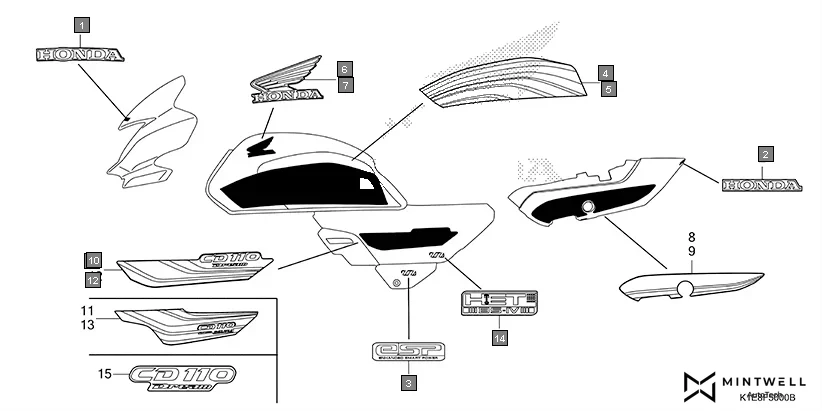

F-50 - MARK/STRIPE
HONDA CD 110 Dream CB110CMDR · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K1E-D00ZF | MARK, HONDA(70MM) *TYPE1* | 1 | |
| 2 | 86102-K1E-D00ZA | MARK, HONDA(60MM) *TYPE1* | 1 | |
| 3 | 86170-K0L-D00 | MARK, ENGINE | 1 | |
| 4 | 86171-K1E-D00ZD | STRIPE, R. FUEL TANK *TYPE1* | 1 | |
| 4 | 86171-K1E-D00ZA | STRIPE, R. FUEL TANK *TYPE9* | 1 | |
| 4 | 86171-K1E-D00ZB | STRIPE, R. FUEL TANK *TYPE8* | 1 | |
| 4 | 86171-K1E-D00ZC | STRIPE, R. FUEL TANK *TYPE7* | 1 | |
| 5 | 86172-K1E-D00ZD | STRIPE, L. FUEL TANK *TYPE1* | 1 | |
| 5 | 86172-K1E-D00ZA | STRIPE, L. FUEL TANK *TYPE9* | 1 | |
| 5 | 86172-K1E-D00ZB | STRIPE, L. FUEL TANK *TYPE8* | 1 | |
| 5 | 86172-K1E-D00ZC | STRIPE, L. FUEL TANK *TYPE7* | 1 | |
| 6 | 86201-K1E-D00ZA | MARK, R. WING(100MM) *TYPE1* | 1 | |
| 7 | 86202-K1E-D00ZA | MARK, L. WING(100MM) *TYPE1* | 1 | |
| 10 | 86831-K1E-D00ZA | STRIPE, R. SIDE COVER *TYPE4* | 1 | |
| 10 | 86831-K1E-D00ZB | STRIPE, R. SIDE COVER *TYPE3* | 1 | |
| 10 | 86831-K1E-D00ZC | STRIPE, R. SIDE COVER *TYPE2* | 1 | |
| 10 | 86831-K1E-D00ZD | STRIPE, R. SIDE COVER *TYPE1* | 1 | |
| 12 | 86832-K1E-D00ZA | STRIPE, L. SIDE COVER *TYPE4* | 1 | |
| 12 | 86832-K1E-D00ZB | STRIPE, L. SIDE COVER *TYPE3* | 1 | |
| 12 | 86832-K1E-D00ZC | STRIPE, L. SIDE COVER *TYPE2* | 1 | |
| 12 | 86832-K1E-D00ZD | STRIPE, L. SIDE COVER *TYPE1* | 1 | |
| 14 | 86833-K0L-D00ZA | MARK(HET BS 6) *TYPE1* | 1 | |
