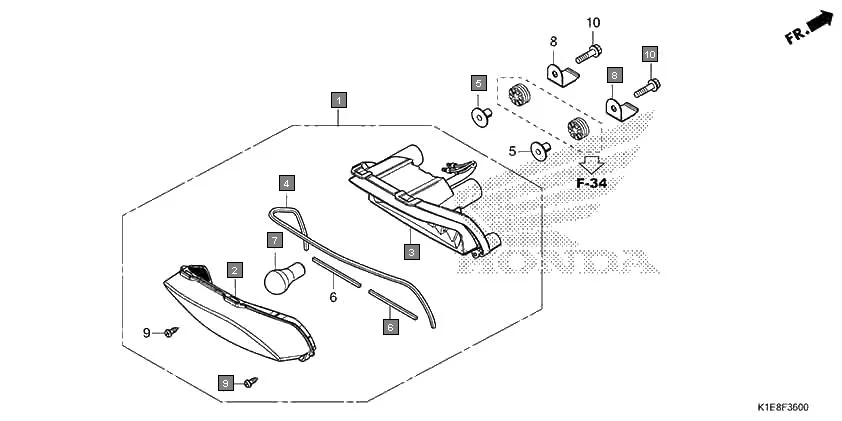

F-36 - TAILLIGHT
HONDA CD 110 Dream CB110CMDR · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33701-K1E-D01 | TAILLIGHT UNIT(12V 21/5W) | 1 | |
| 2 | 33703-K23-901 | LENS COMP., TAILLIGHT | 1 | |
| 3 | 33704-K1E-D01 | BASE COMP., TAILLIGHT | 1 | |
| 4 | 33705-K23-901 | PACKING, LENS | 1 | |
| 5 | 33707-K1C-D00 | COLLAR, TAILLIGHT MOUNTING | 2 | |
| 6 | 33707-K23-901 | PACKING, LENS | 2 | |
| 7 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 8 | 80102-K1C-D00 | PLATE, TAILLIGHT SETTING | 2 | |
| 9 | 93901-24380 | SCREW, TAPPING, 4X12 | 2 | |
| 10 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
