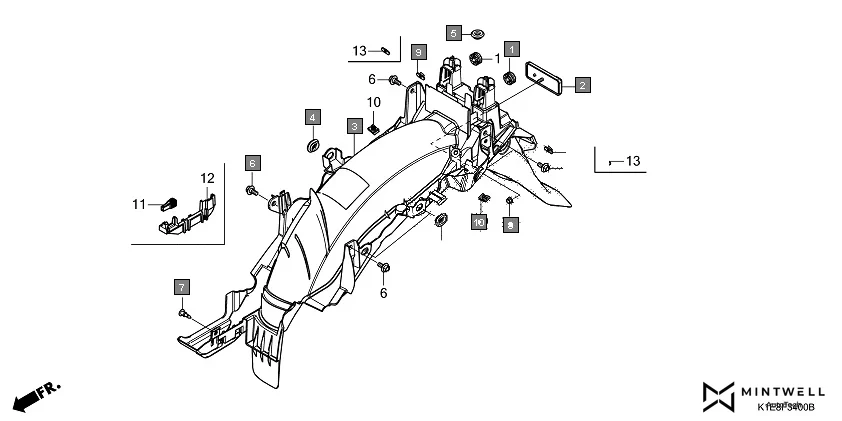

F-34 - REAR FENDER
HONDA CD 110 Dream CB110CMDR · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33705-KW7-900 | RUBBER A TAIL LIGHT MOUNT | 2 | |
| 2 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 3 | 80101-K1E-D00 | FENDER, RR. | 1 | |
| 4 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 3 | |
| 5 | 83601-MN5-000 | GROMMET SIDE COVER | 1 | |
| 6 | 90111-162-000 | BOLT, FLANGE, 6MM | 4 | |
| 7 | 90116-SP0-003 | CLIP, BUMPER SEAL | 1 | |
| 8 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 9 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 10 | 90677-KAN-T00 | NUT, CLIP, 5MM | 2 | |
